Beiben tipper for Kenya
We just load the Beiben tipper for Kenya by RORO to our customer. It is white cab with grey cargo body. Used for construction.
Following the specification of Beiben tipper for Kenya,
| Beiben 2534K /6×4/4100+1450/Long Cab/RHD | |||
| Dimension | 8880*2500*3430mm | ||
| Cargo box | 5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm | ||
| Approaching angle/Departure angle | 26/28° | ||
| Overhang(front/rear) | 1410/1720mm | ||
| Wheel base | 4100+1450mm | ||
| Max speed | 85km/h | ||
| Curb weight | 12650kg | ||
| Engine | Model | WP10.340E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection | |
| Displacement | 9.726L/Diesel | ||
| Stroke | 126/130mm | ||
| Max. power | 250/2200 (kw/rpm) | ||
| Max.torque | 1600/1800（N.m/rpm） | ||
| Emission | Euro III | ||
| Fuel tanker capacity | 300L | ||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | ||
| Gearbox | 9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated | ||
| Gear ratio of gear box | 12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22 | ||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs | |
| Rear | Non-free standing stabilization spring, balance suspension system, 13pcs | ||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | |
| Assistant brake | Engine exhaust brake | ||
| Park brake | Potential springs pressing on middle and rear wheels | ||
| Steering system | ZF8098 hydraulic steering with power assistance | ||
| Frame | Strengthened Straight beam | ||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | ||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | ||
| Tyre | 315/80R22.5 tubeless tyres | ||
| Electrical system | Battery | 2X12V/135Ah | |
| Generator | 28V-35A | ||
| Starter | 5.4Kw/24V | ||
| Cabin | NG80B Long cabin one sleeper and inner A/C ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
||

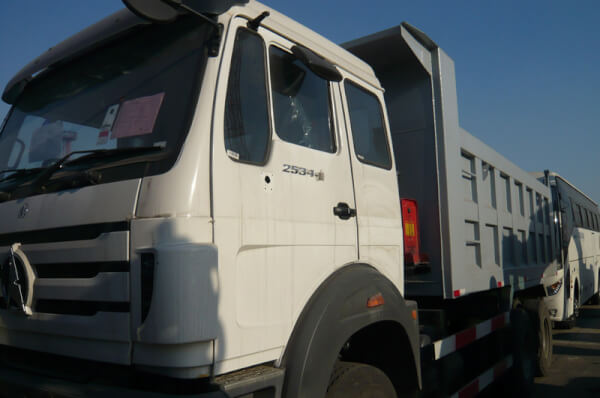

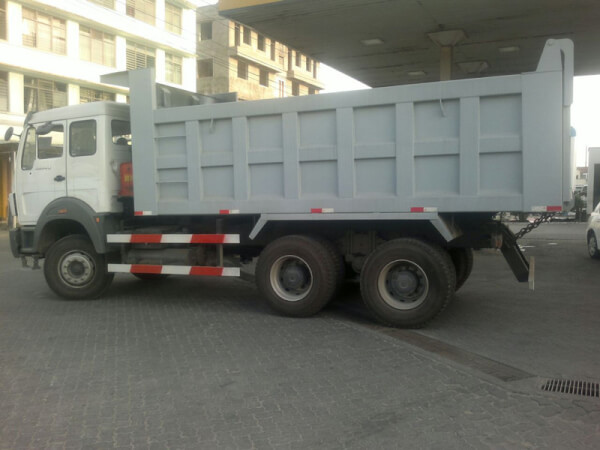

Here are pictures of Beiben tipper for Kenya,
