CAT China loader with bucket and log grapple SEM660D 6ton log loader
Famous brand SEM660D 6ton log loader with bucket and log grapple
Features of the SEM660D log loader,
3.5 cubic 6ton front loader SEM660D featres,
Optimized Engine
Low speed engine with E-fan provides increased operating efficiency
Enhanced fuel pre-filter eliminates water and contaminant from fuel for best fuel system protection
The 93 desert type air cleaner provides machine reliability in most severe applications. Oil-bath type oil filter is optional
Efficient Hydraulic System
The advanced load sensing hydraulic system with flow sharing circuits improves efficiency
World Class hydraulic components ensure high reliability
The optimized hydraulic system paired with the drive train reduces machine cycle time and increases productivity
Relocated hydraulic oil tank ensures hydraulic pump’s life
Operator Station
Premium operator station improves cab sealing and visibility
Sliding side window and AC with fresh air circulation provide operator comfort
Integrated relays and fuse panel. Single cabin harness connection plug provides easy service access
Joystick hydraulic control for easy and precise operation命
Multi-function instrument dashboard with 3-level alarm
Adjustable suspension seat
Reliable Drivetrain
Countershaft transmission with upgraded core components provides high reliability
Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
Clutch cutoff selection switch ensures stable and safe operationThe SEM designed and built axle equips with 10 calipers (6 for front and 4 for rear), it delivers better brake performance and longer service life
Front loader SEM660D Multiple applications,
SEM660D can be widely used in port cargo handling mineral yards, steel mill,and other high productivity demand applications
In aggregate site, coal loading and construction etc loosen material handling utilization applications,SEM660D can load more, move faster and burn less
Multiple work tools for selection
Specification of 6ton SEM660D 6ton log loader,
|
Items
|
SEM660D
|
Items
|
SEM660D
|
||
|
Main Specification
|
Engine
|
||||
|
Rated Load
|
Kg
|
6,000
|
Model
|
Weichai WD10G240
|
|
|
Operating Weight
|
Kg
|
20,000
|
Rated Power
|
Kw
|
178
|
|
Bucket Capacity
|
m3
|
3.3-5.5
|
Rated Speed
|
r/min
|
2000
|
|
Wheelbase
|
mm
|
3,350
|
Displacement
|
L
|
9.726
|
|
Overall Dimension
|
mm
|
8,414*3,370*3,458
|
Implement Hydraulic
|
||
|
Operating Specifications
|
Implement System Type |
Single Load Sensing Flow Sharing System
|
|||
|
Breakout Force
|
KN
|
183
|
Boom Raise Time
|
s
|
5.3
|
|
Dump Clearance
|
mm
|
3048
|
Hydraulic Cycle Time
|
s
|
9.7
|
|
Articulated Angle
|
°
|
38±1
|
System Presure
|
Mpa
|
18
|
|
Transmission
|
Brake System
|
||||
|
Transmission Type
|
Countershaft Power shift
|
Service Brake
|
Dry&Caliper,Air to oil control
|
||
|
Transmission Gears
|
|
F4/R4
|
Parking Brake
|
Drum Type Shoe Brake, Spring Applied&Oil released
|
|
|
Torque Conventer Type
|
Single Stage 3 Elements
|
Steering System
|
|||
|
Marker&Type
|
TR200
|
System Type
|
Flow amplifying
|
||
|
Forward I/Reverse I
|
Km/h
|
7.4/7.4
|
Steering Pump Type
|
Piston Pump
|
|
|
Forward II/Reverse II
|
Km/h
|
14/14
|
System Presure Setting
|
Mpa
|
18
|
|
Forward III/Reverse III
|
Km/h
|
22/22
|
Steering Angle(L/R)
|
°
|
38±1
|
|
Forward IV/Reverse IV
|
Km/h
|
38/38
|
Tires
|
||
|
Axle
|
Size
|
23.5-25
|
|||
|
Main Drive Type
|
Spiral Bevel Gear,Single Stage
|
Type
|
Bias
|
||
|
Final Drive Reduction
|
Planetary Type,Single Stage
|
Layer
|
20
|
||
|
Rear-Oscillatinh+/-
|
°
|
±11
|
Textured Type
|
L3
|
|

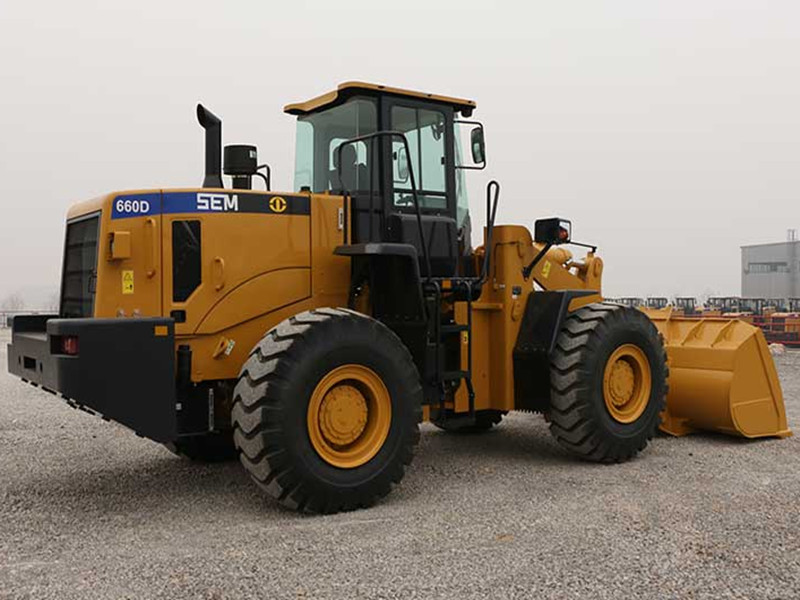

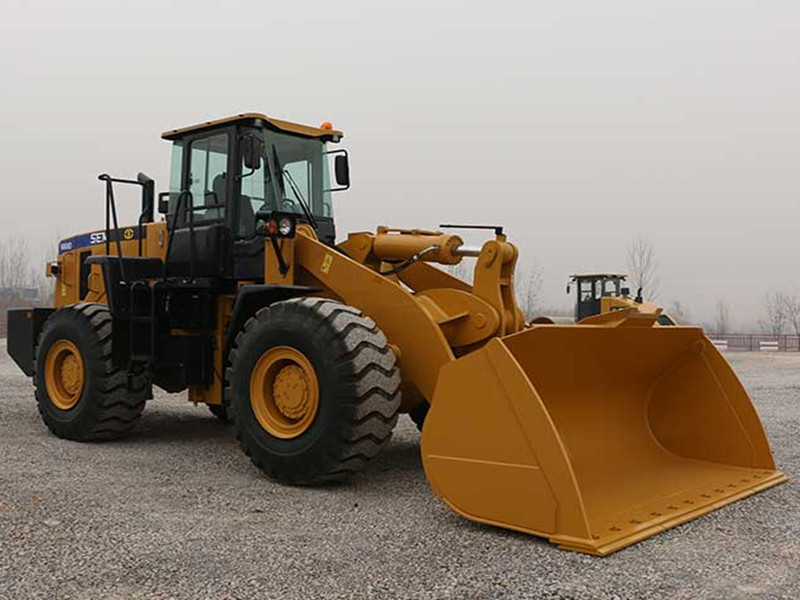

SEM660D detailed pictures,

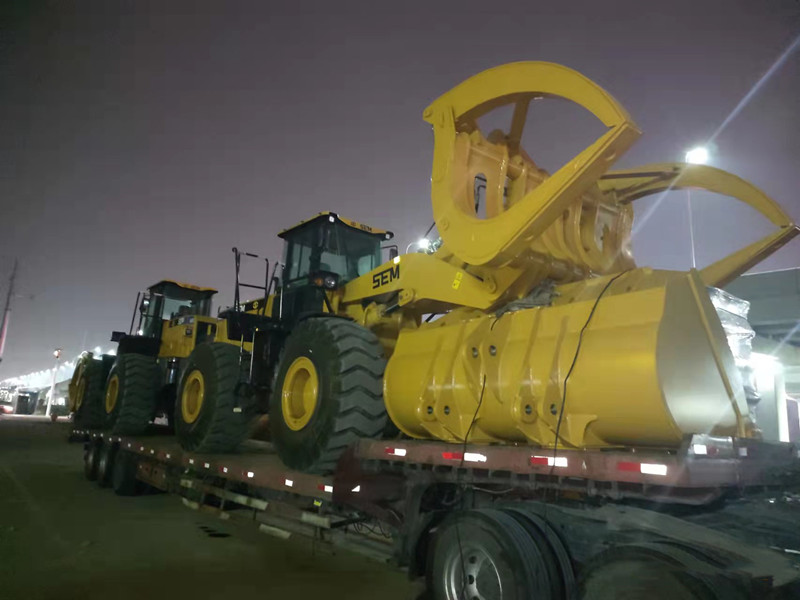

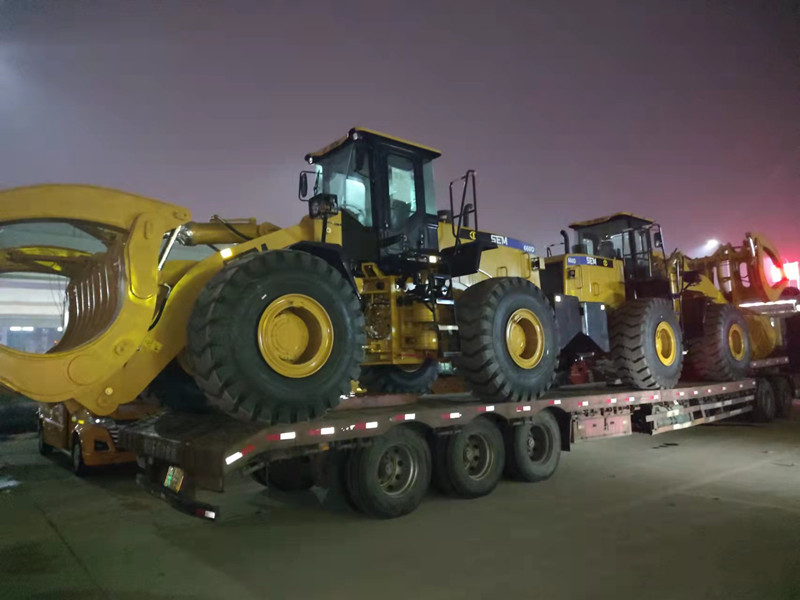

Shipping by bulk or RORO,
