China top quality 1 cubic loader bucket 0.3 cubic excavator bucket 2.5ton backhoe loader WZ30-25

  • backhoe loader WZ30-25
  • China WZ30-25 backhoe
  • WZ30-25 backhoe loader

China best quality backhoe loader

Category:

INQUIRY

China top quality backhoe loader WZ30-25

backhoe loader WZ30-25







Specification of WZ30-25 backhoe loader

arameter

Operating weight

7600KG

Dimension(L*W*H)

5910x2268x3760mm

Wheel base

2250mm

Mini Ground Clearance

300mm

Bucket Capacity

1.0cbm

Breakout Force

38kN

Rated load

2500kg

Bucket Dumping Height

2742mm

Bucket Digging Depth

52mm

Backhoe Capacity

0.3cbm

Max. Digging Depth

4082mm

Max. Pulling Force

39kN

Engine

Model

Yuchai

Rated Power

75kw

Rated Speed

2400 r/min

Max. Torque

≥261.7N.M/1800 r/min

Displacement

4.4L

Steering System

Model of Steering Device

BZZ5-250

Steering Angle

±36°

Min. Turning Radius

5018mm

Pressure of the System

12MPa

Axle

Manufacturer

Feicheng Axle Factory

Main Transmission Type

Double Reduction

Final Reducer

Single Stage Final Reducer

Transmission System

Torque Converter

YJ280 Single-stage Three Elements

Gearbox

Fixed shaft power transmission

Gears

F2/R2

Max.Speed

22km/h

Tyre

Model

16/70-20

Brake System

Service Brake

Air over Oil Caliper Brake;External Type;

Self-regulation;Self-balance

Park Brake

Operation Power Implementing break;

Manual Operation Power Terminating Brake

Hydraulic System

Digging Power of Excavator Grab

46.5kN

Digging Power of Dipper

31kN

Bucket Lifting Time

5.4s

Bucket Lowering Time

3.1s

Bucket Discharge Time

2.0s

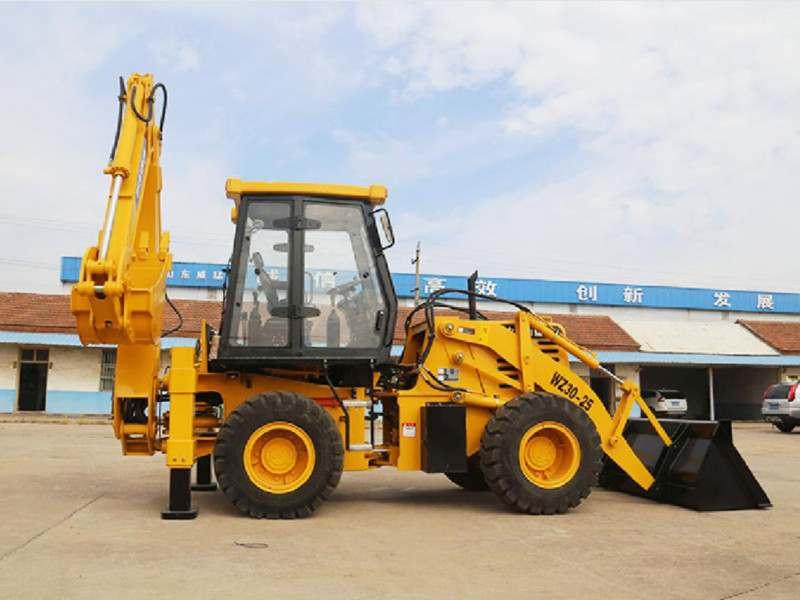

China WZ30-25 backhoe

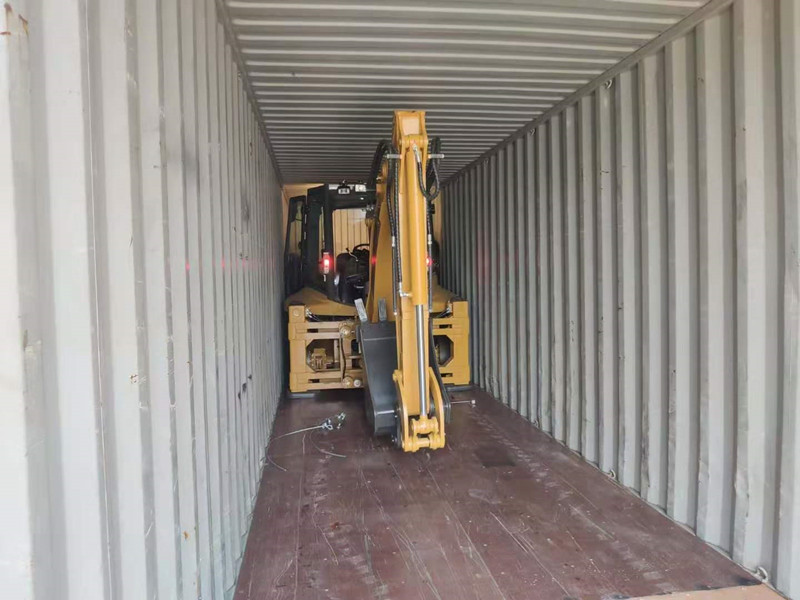

backhoe loader WZ30-25 shipping in container,

backhoe shipping
