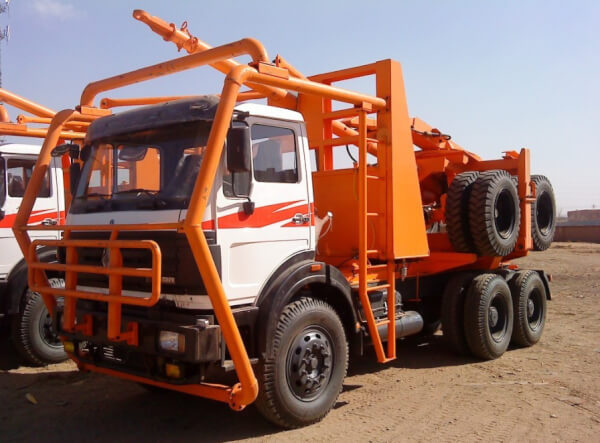

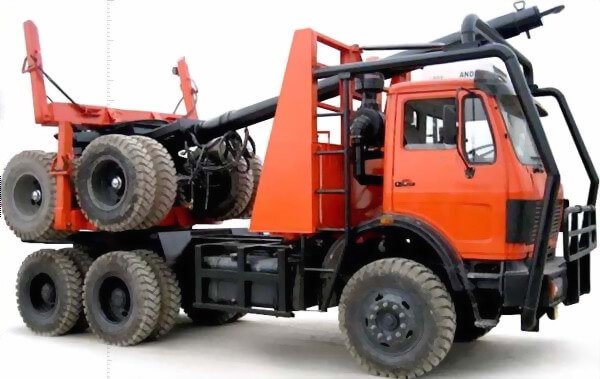

Beiben log truck 2638 6×6 off road log transport truck
Features of thetruck:
- 6×6 drive for off road
- 50ton load of log
- Bogie suspension log trailer
- 1 year warranty
Beiben log truck 6×6 drive for off road log timber transport is famous for the strong power and heavy load.
Specification of the Beiben log truck,
| Wheel base (mm) | 3800+1450 | |
| Curb weight (kg) | 12470 | |
| Max Speed:(Km/h) | ≥90 | |
| Model | WD615.38, water-cooled, four strokes, 6 | |
| cylinders straight in line, turbocharged | ||
| Fuel type | diesel | |
| Min rate of | ≤198 | |
| Engine | consuming | |
| fuel(g/(kW.h)) | ||
| Rated Power / | 280Kw/2400rpm | |
| rotating | ||
| (KW/(r/min) | ||
| Emission | EUROⅡ | |
| Maximum Torque / | ||
| rotating | 1460Nm/1400-1600rpm | |
| speed(N.m/(r/min)) | ||
| Displacement(ml) | 9726 | |
| Fuel tanker capacity (L) | 400 | |
| Clutch | Model | #430, Single dry frictional disc, Hydraulic | ||
| boosting | ||||
| Model | 12JS200T, mechanical type,12 Forward | |||
| speed gear, 2 reverse gear | ||||
| Gearbox | ||||
| Gear ratio | 12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/ | |||
| 1.28/1.00/0.78 R1: 11.56 R2: 2.59 | ||||
| Service brake | Brake gap can be adjusted automatically, | |||
| double circulation air brake system | ||||
| Brake system | Assistant | Engine exhaust brake | ||
| brake | ||||
| Park brake | Potential springs pressing on middle and rear | |||
| wheels | ||||
| Steering system | Model | ZF8098, whole circulation in ball type, | ||
| hydraulic boosting | ||||
| Front | Non-free standing leaf spring,telescopic | |||
| Suspension | Suspension | shock absorber with stabilizer bar suspension | ||
| system | Rear | Non-free standing stabilization | ||
| Suspension | spring, stabilization suspension | |||
| Frame | Fish belly shape, variable width, variable sections | |||
| Cross section | 317×70×8.5+7+8 | |||
| dimension of | ||||
| frame(mm) | ||||
| Front axle | Double-shoe | pneumatic brake, non-driving steering axle | ||
| (Mercedes Benz | ||||
| Technology) | ||||
| Middle and Rear | Double-shoe pneumatic brake, ductile casting casing, | |||
| axle (Mercedes | with hub redactor, double reduction driving axle | |||
| Benz | ||||
| Technology) | ||||
| Tyre | 12.00-24 (one spare tire) | |||
| Electrical | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| system | ||||
| Starter | 5.4Kw/24V | |||
| Short cab, | ||||
| Cab | Full steel skeleton structure, covered with double layer steel | |||
| plate; | ||||
| Can be tipped forwardly; | ||||
