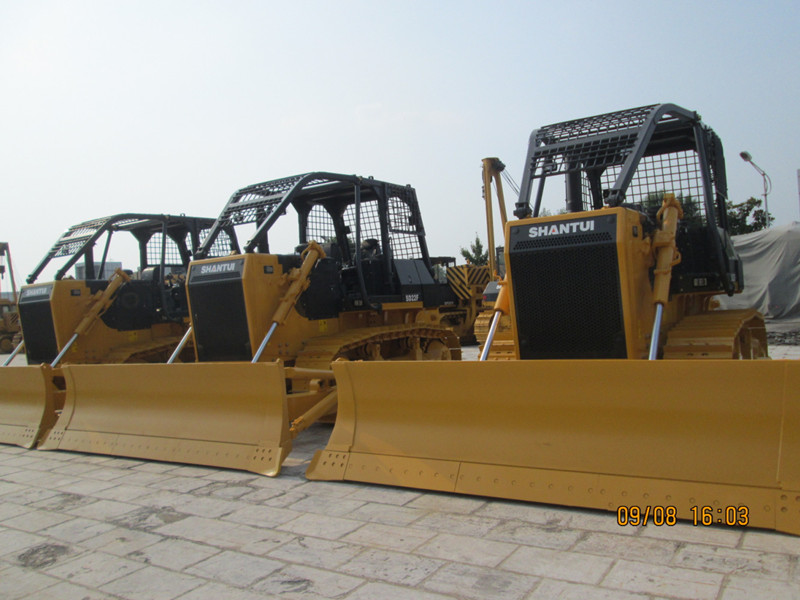

Bulldozer for logging Shantui SD22F lumbering dozer with winch
Bulldozer for logging Shantui SD22F with winch
Features of bulldozer with winch Shantui SD22F:
Bulldozer with winch for logging shantui SD22F is developed in response to the demands of lumbering environment and is equipped with special lumbering ROPS cab.
Engine power/speed: 162kw/1800rpm
Operating weight of whole machine: 24700Kg (excluding ripper)
Blade capacity: 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U
●This product is equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms.

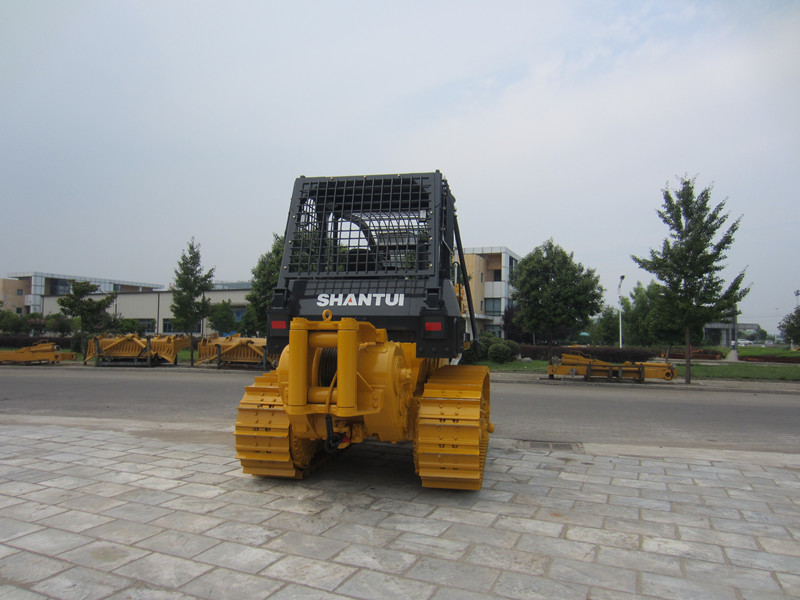

●The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator’s safety.
Performance Parameters
| Length × width × height (mm) (excluding ripper) | 5495×3725×3580 | Operating weight(t) (excluding ripper) | 24.7 |
| Engine model | WD12G240E206/ NT855-C280S10 | Net power/rated speed (kW/rpm) | 162/1800 |
| Ground pressure(Mpa) | 0.077 | Blade type | Straight tilting blade Angle blade U blade Semi-U blade |
| Blade capacity(m3) | 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U blade |
