Side lifter 35ton 40ft 3 axle container side lifter trailer

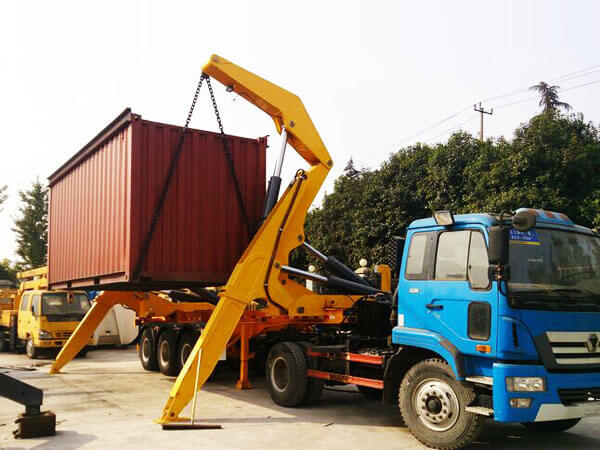

20ft 40ft 35ton container side lifter with 3 axles. Self loading container semi trailer. Side loader trailer.

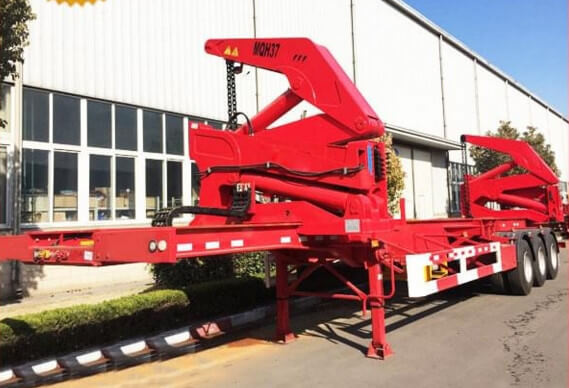

HOT SALE 40FT CONTAINER SIDE LIFTER 35TON
Features of OUR SIDE LIFTER:
- High efficiency. One worker to operate to load or discharge 20ft and 40ft container.
- Safety. XCMG famous brand crane easy and safe to operate.
- Strong chassis. All famous brand trailer parts. High strength steel, thicken spring suspension.
Specification,
| MAIN SPECIFICATION of self loading container truck trailer | |
| Overall(L*W*H) | 14100*2500*4100mm |
| The distance between trailer and container | Optimum distance:400mm |
| The largest distance :1500mm | |
| Specification | Design criteria: GB/T 3811-2008 |
| Crane | Quality Side Crane |
| Max. lifting capacity | 40000kg |
| Max.stabiliser outreach | 3200mm |
| Max. working range | 4000mm |
| Max. pressure of hydraulic | 28MPa |
| Hydraulic system | Hydraulic pump: Italian CASAPPA |
| Electric control system | Hydraulic control valve: Netherlandish AMCA |
| Telecontroller: German NBB | |
| Voltage: 12V | |
| Two chain | Two chain: lgus (imported) |
| Diesel engine | Japanese Kubota diesel engine |
| Trailer Chassis | L*W*H:14100*2500*4000mm |
| Axles: 3*13 tons axles | |
| Tire: 12R22.5 tubless tire, 12 pcs | |
| Suspension:Heavy duty type mechanical suspension | |
| Kingpin:2 inch or 3.5 inch bolted type | |
| Landing gear: 28T | |
| Water-drenching device | |
Welcome to enquiry and visit our side lifter factory.

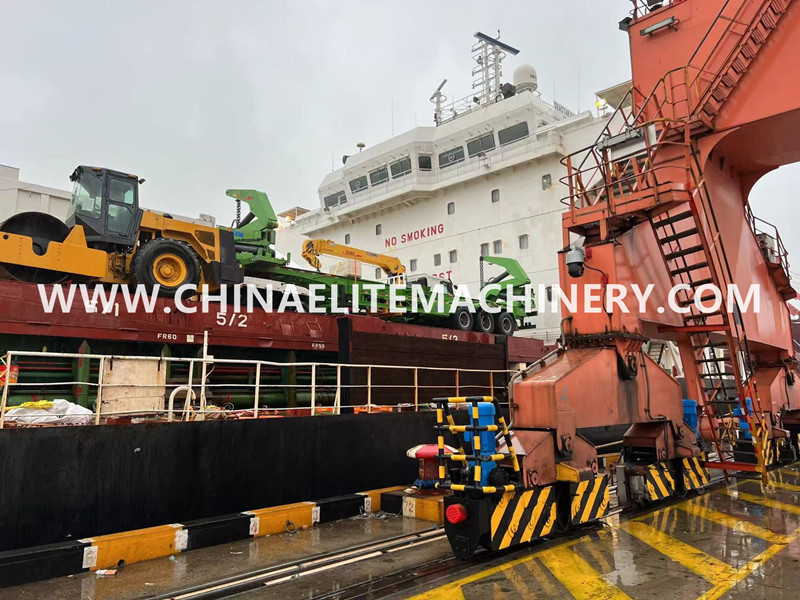

XCMG container side lifter shipping to customer,
