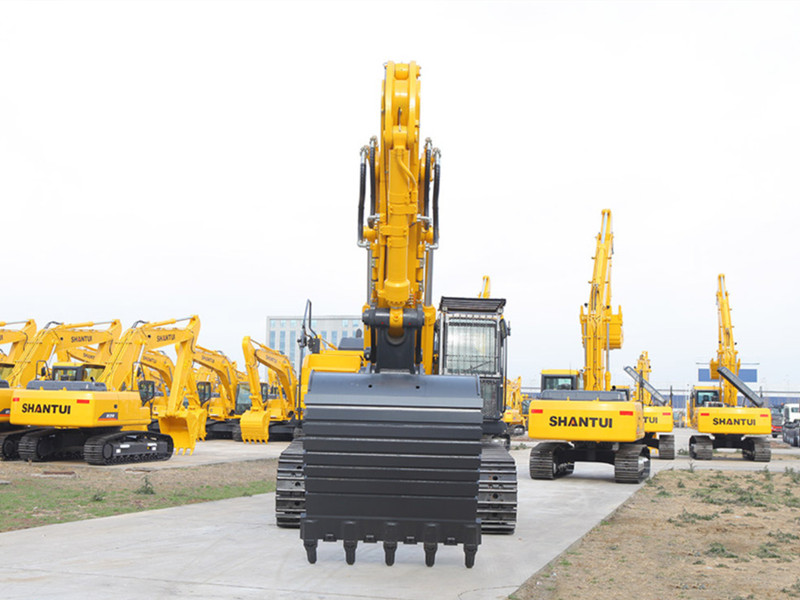

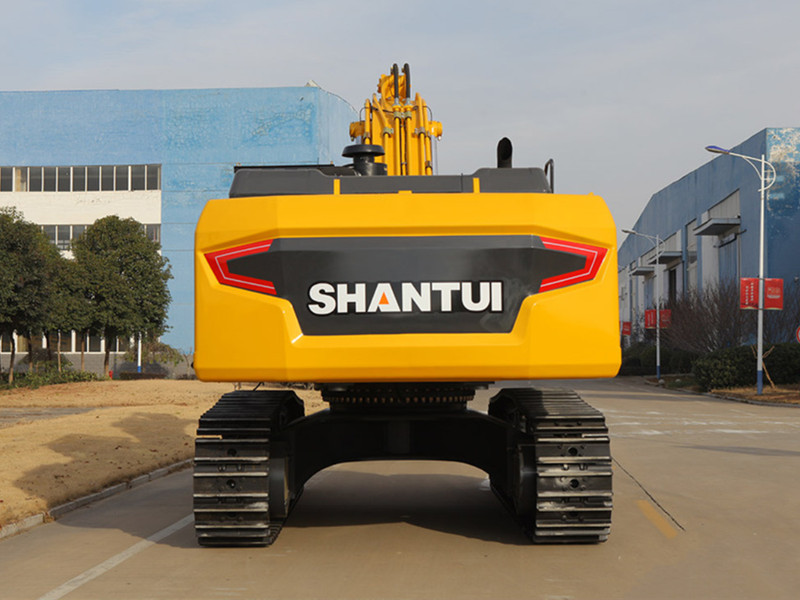

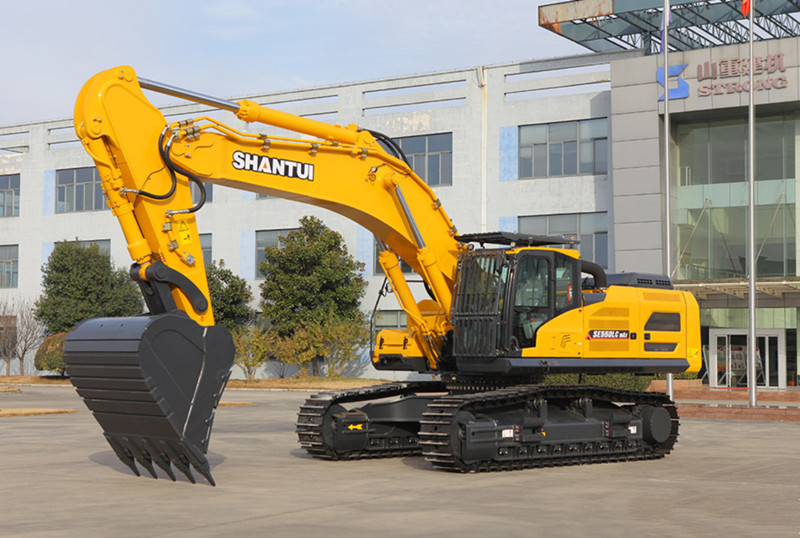

Mining use 50 ton excavator Shantui SE550LC
Excavator Shantui SE550LC features,
Configuration selling point
With its core configuration incorporating a dedicated engine and high-end hydraulic components, complemented by a positive-flow control system, the machine delivers precise control, stable performance, exceptional efficiency, and low fuel consumption.
Ease of maintenance and operation comfort
The machine comes standard with a 10.1-inch touchscreen display and one-touch intelligent start function, providing enhanced human-machine interaction. The fuel filters and oil filters are centrally positioned at a remote location, facilitating easy maintenance. It is equipped with an oil bath air filter, which provides high filtration efficiency.
Adaptability to diverse working conditions
With heavy-duty mining attachments, a mining-specific reinforced chassis, and Shantui’s world-class four wheels and one track, the machine is extensively utilized in earthwork projects and large-scale mining sites.
Excavator Shantui SE550LC specification,
| Parameter | SE550LC |
|---|---|
| Operating weight(kg) | 53500 |
| Engine power(kW/rpm) | 300/1800 |
| Bucket capacity(m³) | 3.2 |
| External dimensions(mm) | 11775*3585*4140 |
| Bucket rod digging force(kN) | 285 |
| Bucket digging force(kN) | 310 |
| Rotating speed(r/min) | 0-8.5 |
| Travel speed(km/h) | 3.3/5.6 |
| Maximum digging height(mm) | 10255 |
| Maximum digging distance(mm) | 10765 |
| Maximum digging depth(mm) | 6320 |
| Emissions (Indicated as per international standards) | Tire3/Stage Ⅲ |
