Hot sale 5.5m3 high efficiency self loading concrete mixer truck
High efficiency 5.5m3 self loading concrete mixer truck for sale
Features,
The mixer truck with the truck and concrete mixing station functions, set concrete filling, metering, mixing and discharging in a body, and can realize
the concrete transportation and on-site concrete construction of concrete mixing equipment. The equipment greatly improves production efficiency,
reduces production time and cost.
Specification of self loading concrete mixer truck ET5.5,
| MODEL | ET5.5 |
| TYPE | Integral frame chassis movable, self loading, mixing, transporting |
| FUNCTION | concrete, sand, fertilizer compound, wet or dry feed material mixing and discharging |
| PRODUCTIVITY | BATCH≤15MINS, 4 BATCHS/HOUR |
| Driving | 4 x 4 |
| Steering | Front steering |
| ENGINE | YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,110KW |
| 行SPEED | HIGH SPEED: 38.5KM/H; LOW SPEE:7.5KM/H |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 2L-3L, working state 8L-10L. |
| TIRE | 16/70－24 (Steel wire tyre) |
| DRUM | Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform. Turn the feed left, turn the discharge right |
| Mixing tank 270°discharges | The tank rotates horizontally to 270 degrees. There is no dead Angle for discharging around the vehicle |
| TIPPING CHUTE | Equipped with 2 chute for detachable to increase discharging length |
| Tilt of mixing tank | 16° |
| SHOVEL | shovel capacity: 0.72³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| OPERATION HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
| MOVING HYDRAULIC | PUMP:DENGHONG |
| Torque converter（HANK） | |
| Work hydraulic | PUMP/valve: DENGHONG |
| Mixing system | SPEED REDUCER:（HANK） |
| Mixing motor（ZHENJIANG DALI） | |
| Drive axle | LIUFENG |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| HIGH-PRESSURE WATER PUMP WASH | HIGH-PRESSURE WATER PUMP WASH |
| Weighing system | Electronic weighing system (language optional） |
| VOLTAGE | Battery 24V-100A 2 pieces |
| HYDRAULIC OIL BOX | TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
| Water tank capacity | 620L |
| Diesel tank capacity | 190L |
| whole weight | COMPLETE VEHICLE KERB MASS 9200kg |
| CAB | Prevent falling objects cab |
| Adjustable steering wheel | |
| Adjustable seat | |
| Seat belts | |
| Fire extinguisher | |
| Astern image | |
| ALARM LAMP | STANDARD CONFIGURATION |
| RADIO | STANDARD CONFIGURATION |
| A/C | Optional |
| ESCAPE HAMMER | STANDARD CONFIGURATION |
| Astern sound prompt | STANDARD CONFIGURATION |
| Walking control mode | STANDARD CONFIGURATION：Electric control |

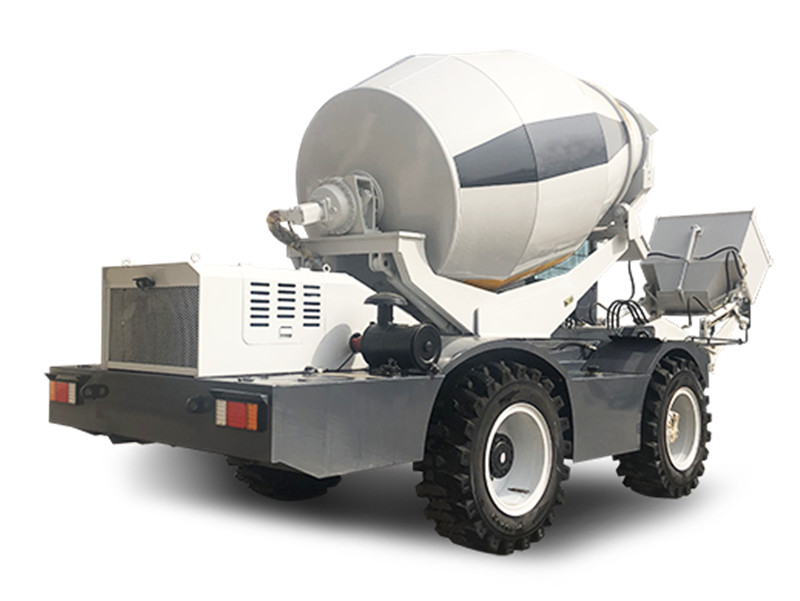

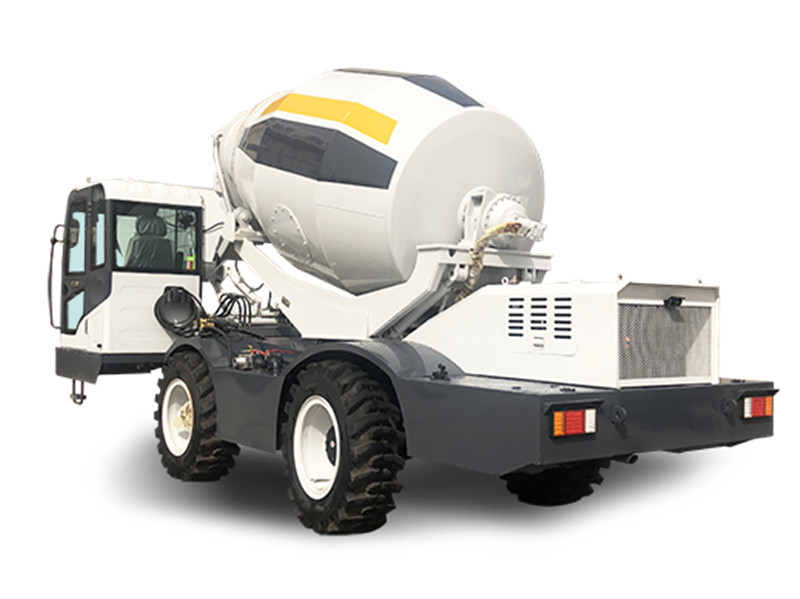

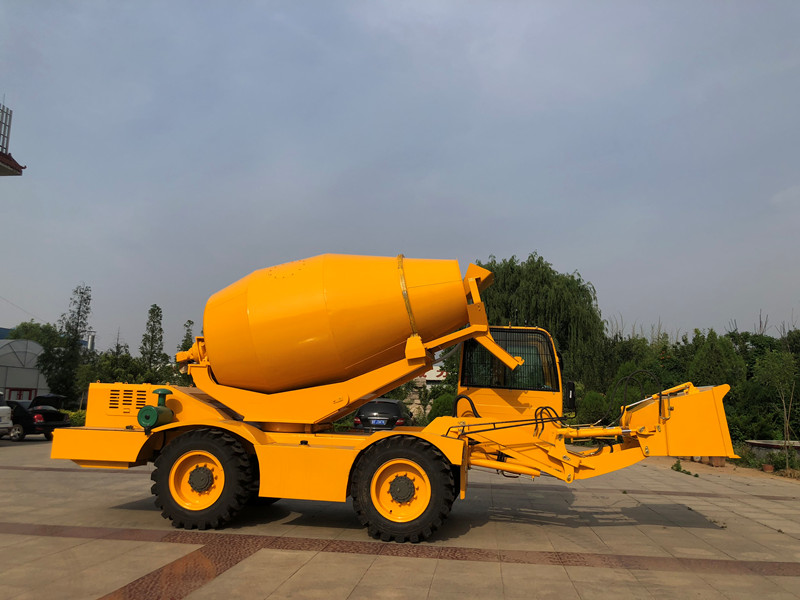

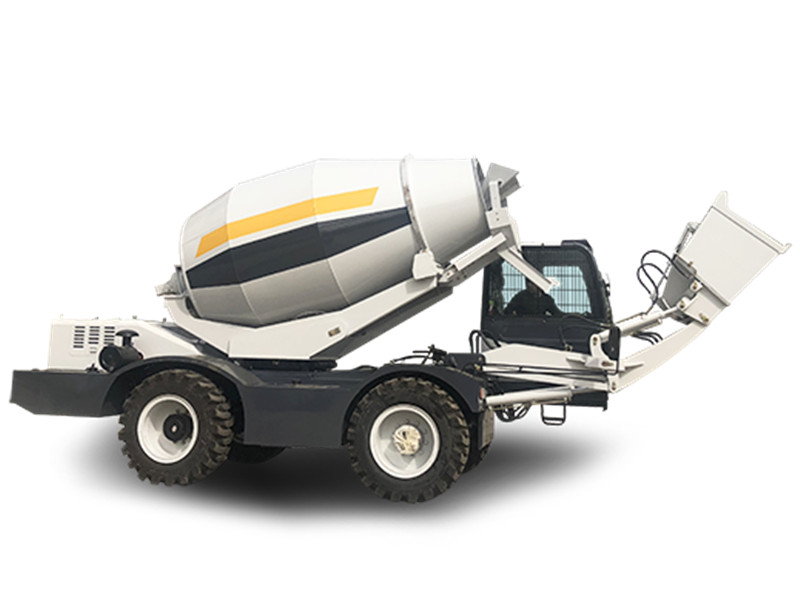

Self loading concrete mixer truck picture,
