SEM grader for sale motor grader for road construction

SEM Motor Grader 919 features a large cab mounted on the front frame.  Good for an exceptional view to the blade and front axle, even during articulation.

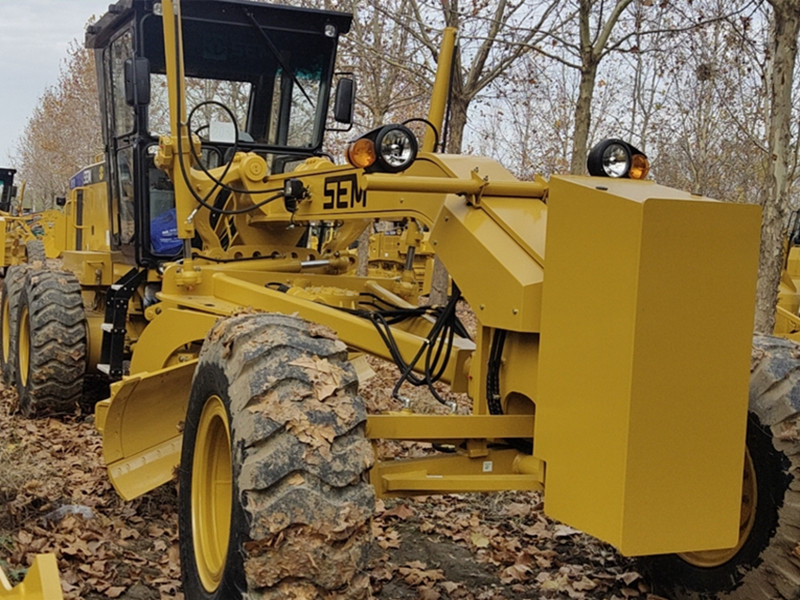

motor grader SEM919







Advantages of SEM grader,

  1. High Productivity. Load sensing hydraulic system. It provides consistent and precise blade movement.
  2. High Reliability. A-frame designed drawbar. It provides strength in all blade positions.
  3. Comfort. World Class industry control layout with low lever efforts. It reduces the operator fatigue.

SEM Tandem Axle for motor grader,

  • Leveraging Caterpillar designing and experience on MG tandem axle.
  • Improved bearing Layout and optimized load distribution with 4 planetary gears final drive.
  • Less down time and reduced labor and service cost for maintenance and repairing.
  • Longer service interval for lubrication oil change.
  • Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line.

SEM motor grader 919 Control System,

  • 7 position link bar with electric over hydraulic control allows ease of operation from within the cab.
  • Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope.
  • The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch.
  • Replaceable bushings reduce service time and cost

Blade Float,

  1. Standard blade float function allows blade to lower without hydraulic pressure for increased versatility.
  2. Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent.
  3. Provides protection for machine and pavement during snow removal and snow plowing.

Hydraulic System,

  • Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency.
  • World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency.
  • Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance.
  • Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks.

Drawbar,

  • A-frame tubular design drawbar provides maximum strength and durability.
  • Replaceable drawbar draft ball (bolted – not welded) for less service time and cost.
  • Easy removal of wear shims to adjust drawbar.

Front Frame,

  • Flanged box section design removes welds from high stress areas, improving reliability and durability.
  • Continuous top and bottom plate construction provides consistency and strength, improving front frame durability.
  • Hydraulic hose routing minimizes exposure to damage and provides quick access for service.
  • Maintenance-free bushings improve durability and reduce overall service cost.

Control Layout,

  • Short throw levers are efficiently spaced, allowing ease of multi-function control.
  • Short lever travel (40mm) with low lever effort reduces operator fatigue.

Cat ® Product LinkTM,

  • Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.

Large Cab,

  • SEM motor grader 919 with high performance dashboard with 3 levels alarming monition system.
  • Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation.
  • Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort.





 Specifications of SEM grader,

Items SEM919 SEM921 SEM922AWD
Operation Weight

(Base Machine)

15070KG 15930KG 18120KG
Overall Dimensions 8703*2630*3360mm 8854*2630*3360mm 10324*2728*3360mm
Blade Length 3974*25*607mm 4279*25*607mm
Max.Lifting Height 475mm
Max.Depth of Cut 715mm
Max.Drawbar ≥78KN ≥85KN Front≥26KN
Rear Axle≥86KN
Wheelbase 6140mm
Frame Articulation Angle 20°
Min.Turning Radius 7.8mm
Engine Brand SDEC SC8D190.1G2 SDEC SC9D220G2
Rated Power 140KW 162KW
Transmission Type Hangchi 6WG180
Travel Speed

(Forward/Rear)

40/25km/h
Rear Axle/Tandem SEM ST22
Service Brake Outboard disc with brake,Air to oil control
Oscillation

(Front up/Rear up)

15/25°
Max.Oscillation Angle ±16°
Steering Angle

(Left/Right)

47.5°
Max.Lean Angle

of Front Wheels

18°
Hydraulic System Load Sensing,PPPC

SEM grader in work,

motor grader for coal mining



















SEM grader RORO shipping,



























Welcome to contact any time. Our professional service team will supply you the best quality machinery with favorable price.

Tel/whatsapp: 008615066278170Skype: ericy-xuEmail: [email protected]

SEM919 190hp motor grader
