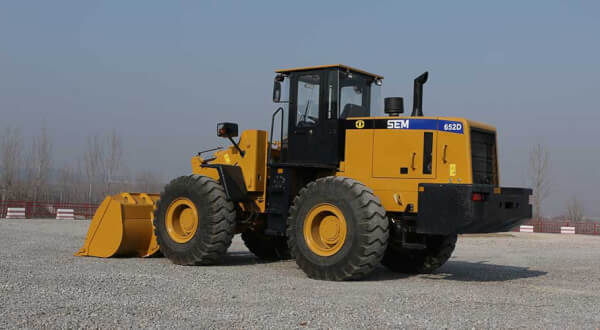

China 3m3 loader for sale SEM652D SEM wheel loader price
China 3m3 loader SEM wheel loader price
Features of the 3m3 wheel loader,
3m3 loader SEM wheel loader price 652D featres,
SEM652D Multiple applications,
- Large volume earth moving
- Hopper feeding
- Coal loading
- Sand loading
- Construction
- Mining
SEM wheel loader 652D adopts Weichai powerful engine
- High efficiency
- Low fuel consumption
Advanced cooling system
Solid structure
Machine Applications
- The sturdy design of the 652D makes it the perfect machine for large volume earthmoving applications
- In Hopper feeding and Coal loading applications the 652D can load more, move faster and burn less fuel
- Multiple work tools are available for increased versatility
Specification of SEM wheel loader price 652D
| Items | SEM652D | |
| Rated Load | kg | 5,000 |
| Operating Weight with Standard Bucket | kg | 16,550 |
| Bucket Capacity | m³ | 2.7-4.5 |
| Wheel Base | mm | 3,200 |
| Overall Dimension (outside of tire) | mm | 8,060×2,963×3,417 |
| Operating Specifications | ||
| Breakout Force (GRD) | kN | 161 |
| Dump Clearance | mm | 3,113 |
| Articulated Angle | ° | 38±1 |
| Transmission | ||
| Transmission Type | Countershaft, power shift | |
| Transmission Gears | F4/R4 | |
| Torque Converter Type | Single stage 3 elements | |
| Maker & Type | SEM TR200 | |
| Forward I/ Reverse I | km/h | 7.9/7.9 |
| Forward II/ Reverse II | km/h | 15/15 |
| Forward III/ Reverse III | km/h | 24/24 |
| Forward IV/ Reverse IV | km/h | 41/41 |
| Axle | ||
| Main Drive Type | Spiral bevel gear, single stage | |
| Final Drive Reduction Type | Planetary type, singe stage | |
| Rear – Oscillating +/- | ° | ± 11 |
| Engine | ||
| Model | WD10 | |
| Rated Power | kW | 162 |
| Rated Speed | r/min | 2,000 |
| Displacement | L | 9.726 |
| Implement Hydraulic | ||
| Implement System Type | Twin pump flow merging hydraulic system | |
| Twin pump Boom Raise Time | s | 5.13 |
| Hydraulic Cycle Time (rated payload) | s | 9.5 |
| System Pressure Setting | Mpa | 17 |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | |
| Parking Brake | Drum type shoe brake, spring applied & oil released |
|
| Steering System | ||
| System Type | Flow amplifying | |
| Steering Pump Type | Gear pump | |
| System Pressure Setting | Mpa | 16 |
| Steering Angle (L/R) | ° | 38±1 |
| Tires | ||
| Size | 23.5-25 | |
| Type | Bias | |
| Layer | 16 | |
| Textured Type | L3 |
Shipping by bulk or RORO or in container with cab and tires disassembled.
