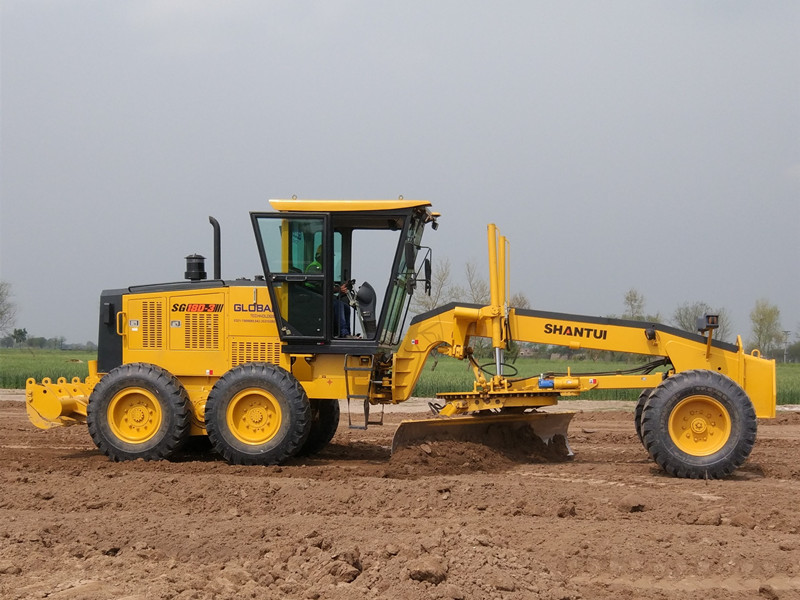

Best Selling road construction machinery Shantui grader SG18
Shantui SG18-3 motor grader adopts the external ring gear type working device to achieve higher transmitted torque. Larger blade cutting angle, and better material control capability and features the maximum traction force among the domestic like machines. This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing, and snow removing. It is an ideally essential machine for large building constructions, water conservancy projects.
Features of Shantui grader SG18:
● Featuring reliable performances and high efficiency and energy-saving, the Cummins engine and Shangchai engine are at your choice.
● 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
● Box-type structure welded from integral plates features high strength.
● Extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
● Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
● International advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
● Full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
● High-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
● Cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
● Standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
● Maintenance-free high performance battery is equipped.
● Steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
● Hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
● Automatic leveling system can be additionally installed.
● Special drive tires and the conventional tires are at your choice for the motor grader.
Shantui Motor grader Performance Parameters
| Length × width × height (mm) | 9130×2600×3400 | Operating weight (t) | 16.2 |
| Engine model | 6BTAA5.9-C180 SC8D190.1G2 | Rated power(kW/rpm) | 132(180HP)/2200 140(190HP)/2300 |
| Vehicle speed (km/h) | 5.3~37 | Minimum turning radius (mm) | 7800 |
| Blade dimension (mm) | 3965/635 | Rated working pressure (MPa) | 16 |
