Mining machinery 98 ton excavator Shantui SE980LC with 6.5m³ bucket
Configuration selling point
Equipped with a high-power engine, the machine delivers robust power, exceptional efficiency and energy savings. Additionally, it is equipped with a large-displacement main pump and a fully electronic control hydraulic system to achieve precise matching for optimal performance.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen, offering multiple working mode selections, as well as features such as an electric heating air-suspension seat and a high-power air conditioning system. The machine provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Shantui SE980LC 98 ton excavator specification,
| Parameter | SE980LCW |
|---|---|
| Operating weight(kg) | 97800 |
| Engine power(kW/rpm) | 571/1800 |
| Bucket capacity(m³) | 6.5 |
| External dimensions(mm) | 13720*4200*4990 |
| Bucket rod digging force(kN) | 417 |
| Bucket digging force(kN) | 480 |
| Rotating speed(r/min) | 0-6.9 |
| Travel speed(km/h) | 2.8/4.1 |
| Maximum digging height(mm) | 12735 |
| Maximum digging distance(mm) | 12620 |
| Maximum digging depth(mm) | 7150 |
| Emissions (Indicated as per international standards) | Eu stage IIIA |

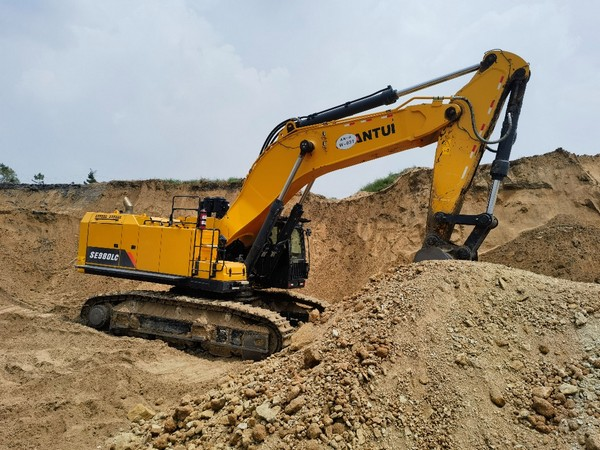

Shantui SE980LC 98 ton excavator in work,
