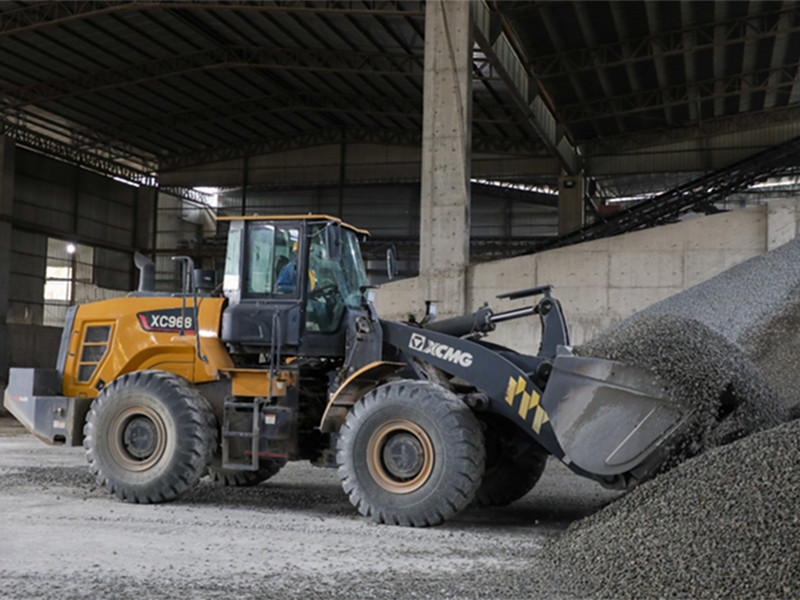

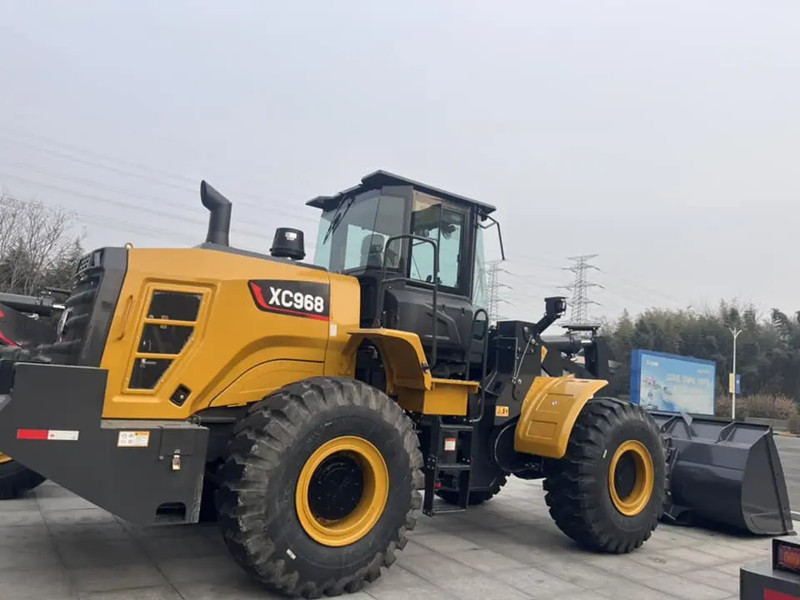

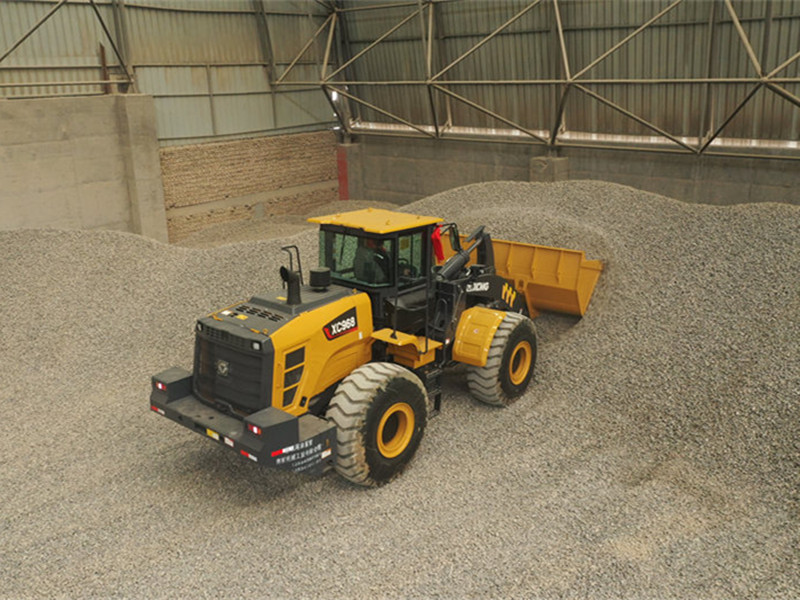

6 ton wheel loader for mining and construction XCMG XC968
Main Features of XCMG XC968,
Advanced: High-power electronically-controlled engine with high-pressure common rail, featuring a large torque reserve coefficient and excellent power performance.
Energy-saving: Equipped with a turbocharged engine for environmental protection, energy conservation, and strong power. Electronically-controlled fixed & shaft power shift transmission, highly efficient and energy-saving.
Reliable: Electronically-controlled fixed & shaft power shift transmission with high reliability and long service life. Hydraulic pipeline sealing structure comprehensively upgraded to reduce pipeline connection leakage and improve hydraulic system reliability.
High efficiency: Dual-pump confluence and equivalent unloading technology with steering priority valve, plus load-sensing full hydraulic steering system with coaxial flow amplification, increasing the tractive force of the machine in combined operating conditions and improving the operation efficiency.
Comfortable: Equipped with an automatic gear shifting switch (KD function), with 4 forward and 4 reverse gears, advanced performance, providing smooth gear shifting, simplifying driver operation, and effectively reducing driver workload to meet various operating requirements of the loader; Adopting pilot hydraulic control for comfortable and efficient operation; full hydraulic flow amplification steering for light and flexible operation; hydraulic control for steering limit, with mechanical dual limit, and hydraulic control limit superior to mechanical limit.
Convenient: Electronic sensing systems are used for pressure and temperature measurement devices, making maintenance and service more convenient for users; Centralized fuse box is adopted for easier and more efficient inspection and maintenance.
XCMG XC968 specification,
|
Description
|
Unit
|
Parameter value
|
|
Rated operating load
|
kg
|
6000
|
|
Bucket capacity
|
m³
|
3.5
|
|
Machine weight
|
kg
|
20000±300
|
|
Dumping height
|
mm
|
3180
|
|
Maximum lift height
|
mm
|
5780
|
|
Wheel base
|
mm
|
3450
|
|
Min ground clearance
|
mm
|
425
|
|
Max.breakout force
|
kN
|
≥200
|
|
Max tractive force
|
kN
|
175±5%
|
|
Boom lifting time
|
s
|
≤5.6
|
|
Total hydraulic cycle time
|
s
|
≤10
|
|
From the center of rear axle
|
mm
|
1725
|
|
Rollback angle during lifting
|
°
|
57
|
|
Dumping angle
|
°
|
45
|
|
Departure angle
|
°
|
29
|
| Vehicle steering angle | ° | 40 |
| Tyre size | 26.5-25 | |
|
Overall machine dimension L×W×H
|
mm
|
8535×3200×3455
|
|
Engine model
|
WD10G240E201
|
|
|
Rated power
|
kW
|
178
|
|
Gears
|
Forward 4 / reverse 4
|
|
|
Drive axle
|
dry-type axle
|
|
|
Air conditioner
|
Cooling and heating
|
