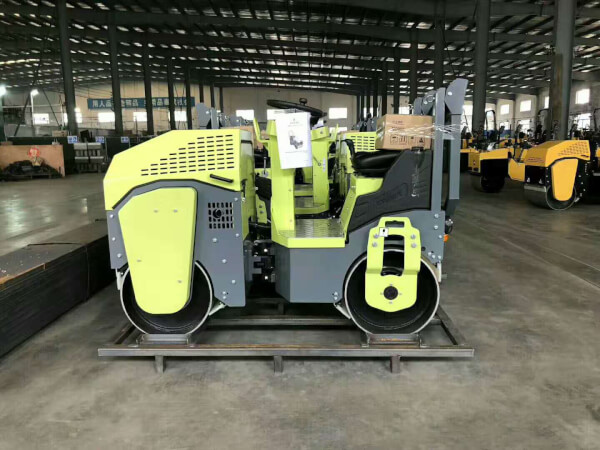

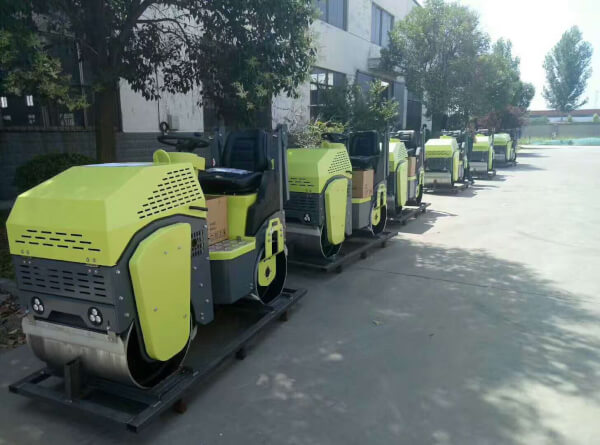

Mini hydraulic 1ton road roller
Features of the 1ton road roller:
1. 1ton road roller CE certified.
2. Hydraulic steering comfortable driving.
3. Famous brand pump and motor
4. Beautiful design.
Specification of 1ton road roller
| ITEM NO/DETAILS | ET1000A | ET1000 | ET1000B | ET1000S | |
| ENGINE | |||||
| Engine | HONDA GX390 | KIPOR 186FE | CHANGCHAI 186F | JINFEIYU RD90N-1 | |
| Engine type | Single cylinder, vertical, air-cooled, four-stroke, gasoline | Single cylinder, vertical, air-cooled, four-stroke, diesel | Single cylinder, horizontal, water-cooled, four-stroke, diesel | ||
| Number of cylinders | 1 | ||||
| Output power (KW) | 9.7 | 6 | 6 | 5.88 | |
| Rating speed(RPM) | 3600 | 3600 | 3600 | 2400 | |
| DRIVING | |||||
| Electrical equipment(V) | 12 | ||||
| Drive mode | Variable plunge pump, stepless speed change, double-wheel series | ||||
| Walking speed (KM/H) | 0–4 | ||||
| Theoretical climbing ability(%) | 30/35(vibration on/off) | ||||
| STEERING | |||||
| Swing angle(°) | 28 | ||||
| Steering mode | Hydraulic cylinder, articulated steering | ||||
| Steering system | Swing articulated | ||||
| EXCITING SYSTEM | |||||
| Vibration wheel | Front | ||||
| Drive form | Mechanical vibration, electromagnetic clutch | ||||
| Vibration frequency (HZ) | 70 | 70 | 70 | 65 | |
| Vibration amplitude (MM) | 0.5 | ||||
| Exciting force(KN) | 20 | ||||
| SPRINKING SYSTEM | |||||
| Water spray form | Gravity-type water | ||||
| CAPACITY | |||||
| Hydraulic oil capacity(L) | 13 | ||||
| Fuel capacity(L) | 6.5 | 15 | 5.5 | 10 | |
| Water tank capacity (L) | 65 | ||||
| SIZE | |||||
| Working width(MM) | 825 | ||||
| Overall length(MM) | 1870 | ||||
| Machine height(MM) | 1450 | ||||
| Turning radius(outer)(MM) | 2600 | ||||
| Ground clearance(MM) | 165 | ||||
| Wheel track(MM) | 1230 | ||||
| Drum size | 500*700mm*2 | ||||
| Drum thickness(MM) | 12 | ||||
| WEIGHT | |||||
| Weight(KG) | 1000 | ||||
| Static load(N/CM) | 56/77 | 57/77 | 56/77 | 58/77 | |
road roller usage,
The mni road roller is used for asphalt roads used in municipal, highway pavement maintenance operations,
also apply to groove, pipe trench backfill compaction in the construction engineering, building construction and square homework, rolling lawns, etc.

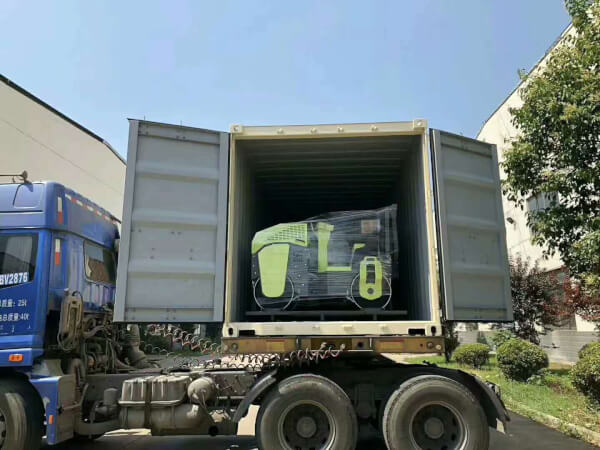

Mini road roller shipping in container,
