Caterpillar China 18ton soil compactor  SEM518

Advantages of the 18ton soil compactor SEM518,

Vibe Pod Design

Eccentric vibe pod design, extends system life by 50%

Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system

Completely sealed eccentric gear eliminates contamination, prolongs bearing life

Cooling System

Isolated modular cooling system

Suction style fan pulls low temperature air through the radiator, providing superior cooling capability

Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ℃

Shunt tank provides constant system pressure and provides easy visual check of coolant level

Vibratory Hydraulic System

Closed center hydraulic system

Improves efficiency by 20% over the open center system

Reduces oil contamination, prolongs life of hydraulic system

Maintains higher pressure and smaller energy loss

Allows for simpler hose routing

Requires smaller volume hydraulic tank, reduces maintenance cost

World class vibratory hydraulic components

SEM518 utilize Sauer piston pump and motor

Vibratory hose

Utilize Eton hoses and joints, high reliability

Tiltable Cab

SEM offers a tiltable cabin which provides more convenient maintenance of the pump, transmission, hose and electronic components

Hydraulic tiltable cab is optional

18ton soil compactor SEM518 specification,

SEM518 Main Specifications
Emission China StageII
Standard rated power-gross(kW) 97.5
Rated speed (r/min) 2200
Peak torque/speed-gross(N.m/rmp) 560/1400-1600
Sound level-spectator (dB(A)) 112
Sound level-operator position with cab  (dB(A)) 86
Compaction (% of XS122) 100
Composite work cycle fuel consumption (1/hr)(% of XS122) 100
Ambient capability-STD sea level (Deg C)
Ambient capability-HA sea level (Deg C) 49
Ambient capability-Cold weather (Deg C) -10
Operating Specifications
Machine mass w/std config (kg) 12000±3%
Weight at drum w/std config (kg) 6900±3%
Weight on rear axle (kg) 5100
Static linear load (N/cm) 310
Max.grade ability w/o vibbration ((%) 45
Articulated angle (°) 33±1
Turning radius inside drum edge (mm) 5990
Compaction width (mm) 2130
Ground clearance (mm) 442
Travel speed
Lo range (km/h) 0 to 5.5
Hi range (km/h) 0 to 12
Hydraulic cycle time
Full turn time (s) 6±0.5
Vibratory system
Freqency-hi  (HZ) 33
Freqency-lo (HZ) 30
Amplitude-hi (mm) 1.8
Amplitude-lo (mm) 0.9
Centrifugal force-hi (kN) 245
Centrifugal force-lo (kN) 150
Dimensions
Machine dimensions (mm) 5815*2290*3130
Oscillation angle (°) 10±1
Wheelbase (mm) 2900
Tread width (mm) 1600
Drum width (mm) 2130
Drum diameter (mm) 1600
Tire specs 23.1-26 12PR12
Tire pressure setting (Mpa) 0.35

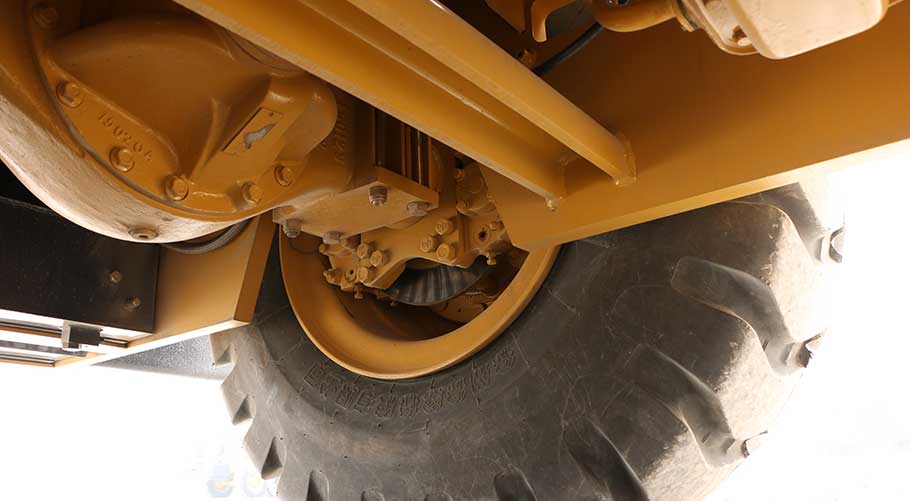

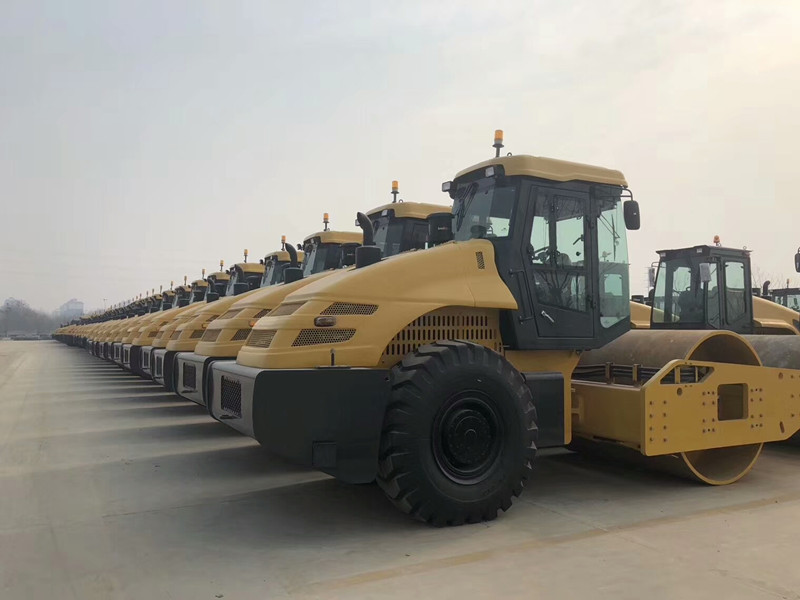

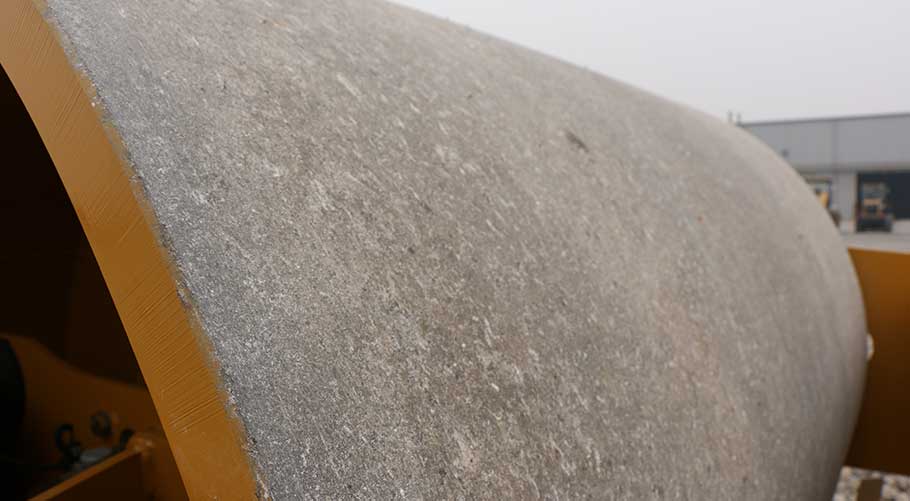

Detailed pictures of the soil compactor,

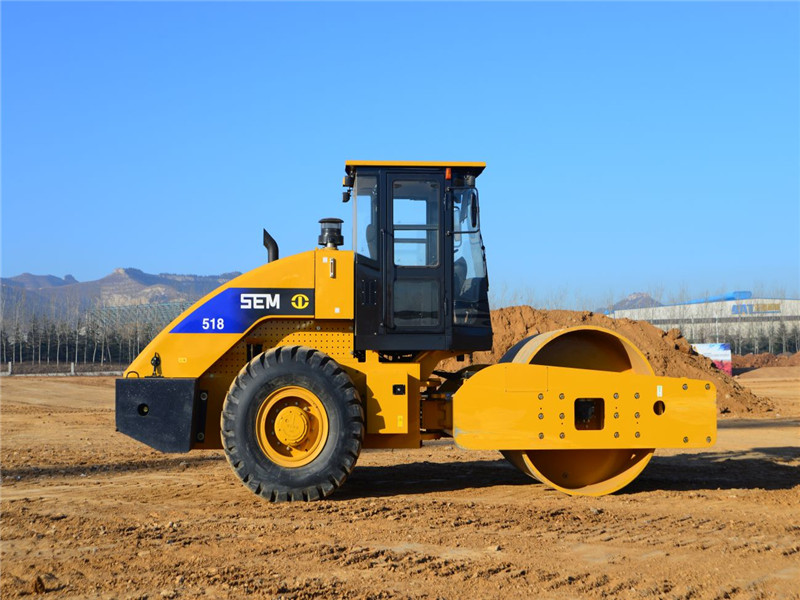

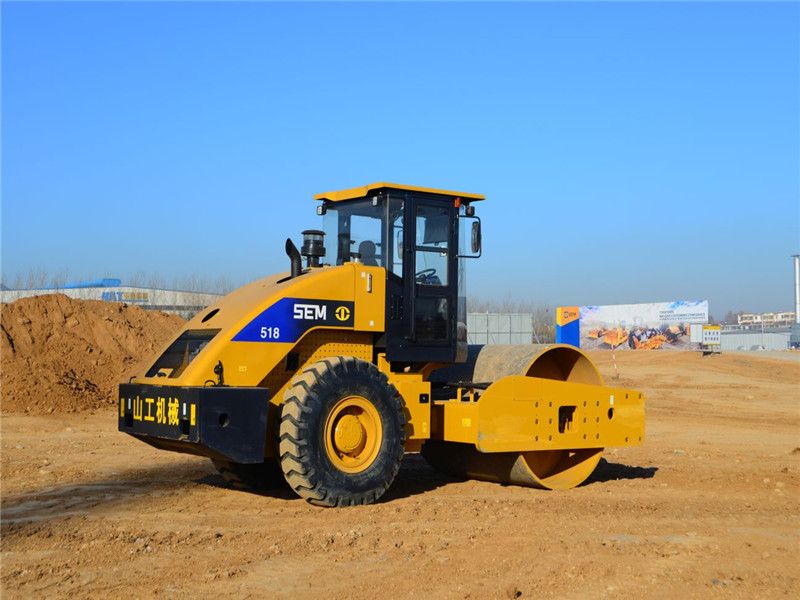

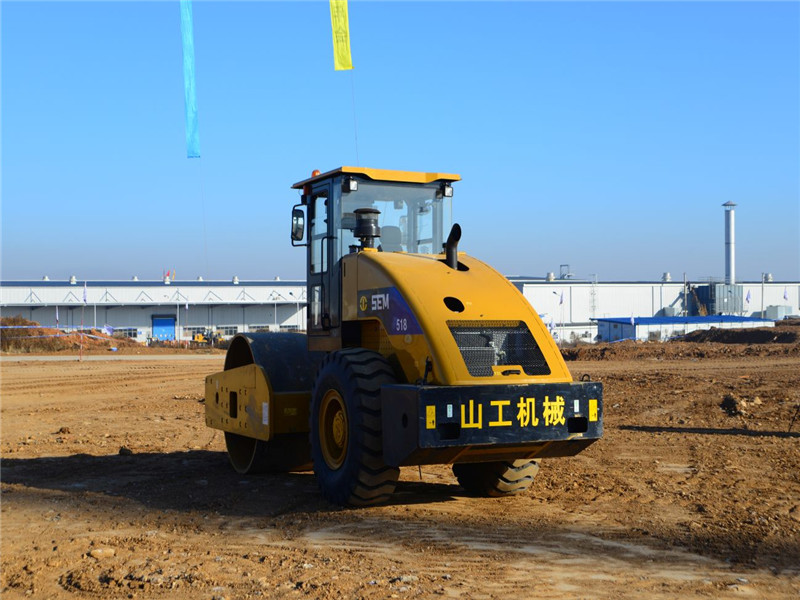

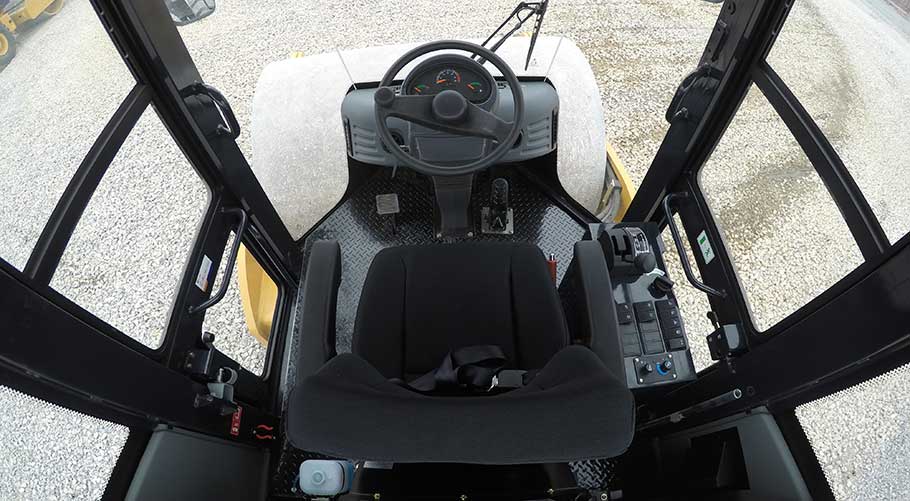

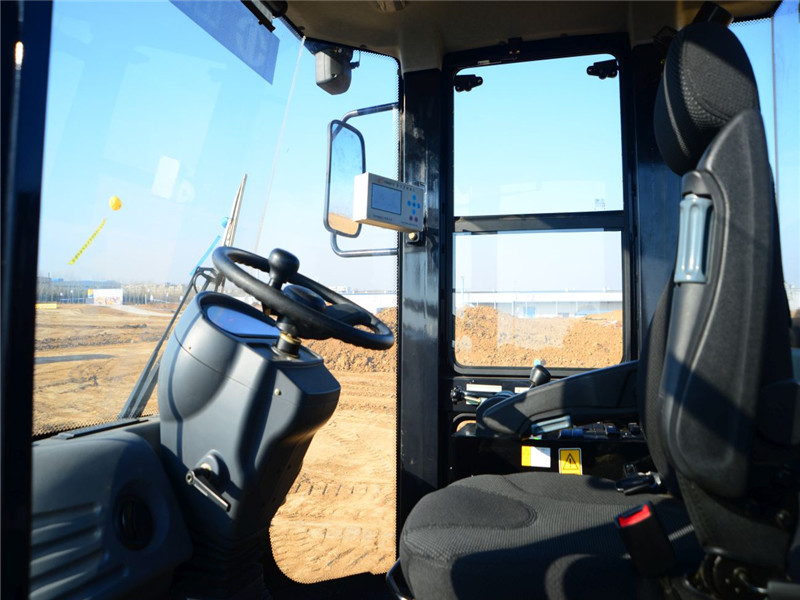

soil compactor SEM518 SEM518 soil compactor cabin
