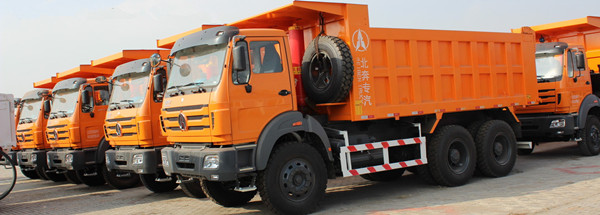

Beiben dump truck 20 cubic 10 wheel tipper lorry self tipping truck
Specification of Beiben dump truck 20 cubic,
|
BEIBEN NG80 Tipper Truck
|
|||
|
Driving type
|
LHD (Right Hand Drive is optional)
|
||
|
Driver’s cab
|
Long cabin
|
||
|
Clutch
|
430mm, hydraulically operating with air assistance
|
||
|
Transmission
|
FULLER Brand 9JS150A transmission.
|
||
|
Front Axle
|
Benz front axle 7.5 tons
|
||
|
Rear Axle
|
Benz 13T double reduction drive axle
|
||
|
Steering
|
ZF8098
|
||
|
Wheel & Types
|
Tyres: 12.00R20
|
||
|
Optional: 12R22.5
|
|||
|
Radial tire and tubeless tire is optional
|
|||
|
Dimensions
|
Wheel base: 3800+1450mm
|
||
|
Overall size: 7930×2495×3430mm
|
|||
|
Weight
|
Kerb weight 12000kg
|
||
|
Performance
|
Maximum driving speed(km/h) 85
|
||
|
Body mm
|
5800x2300x1200 Floor 8 side&back4
|
||
