1cbm loader bucket 95hp Foton backhoe loader Lovol FLB468

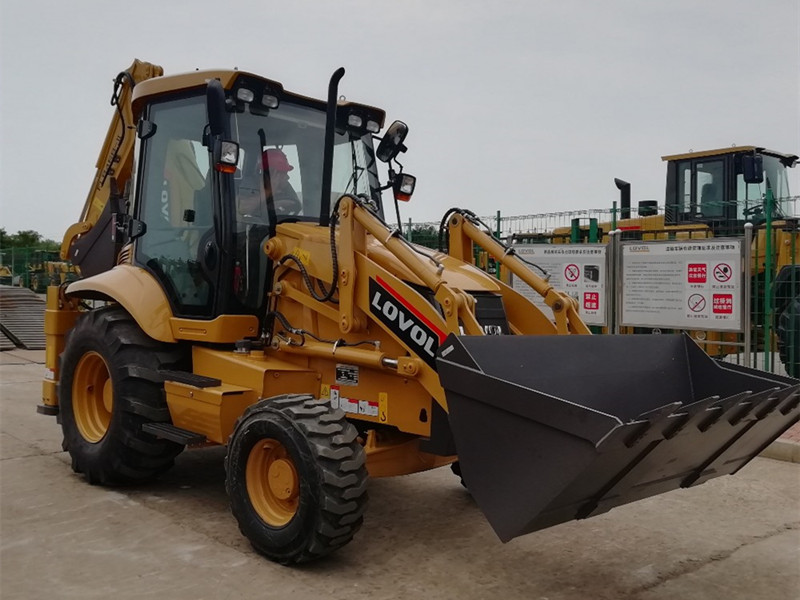

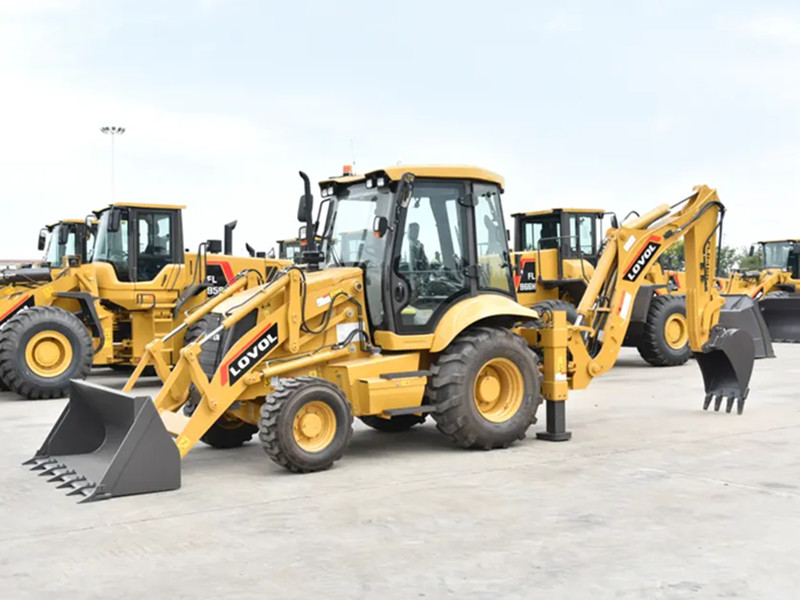

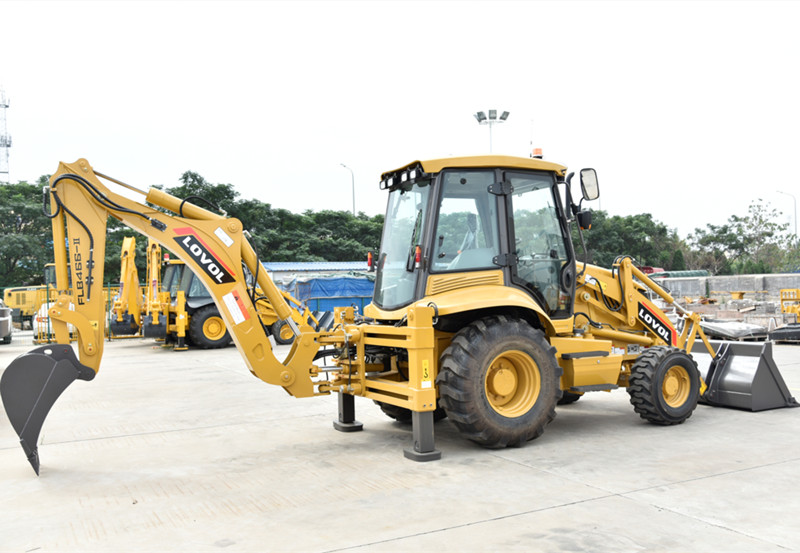

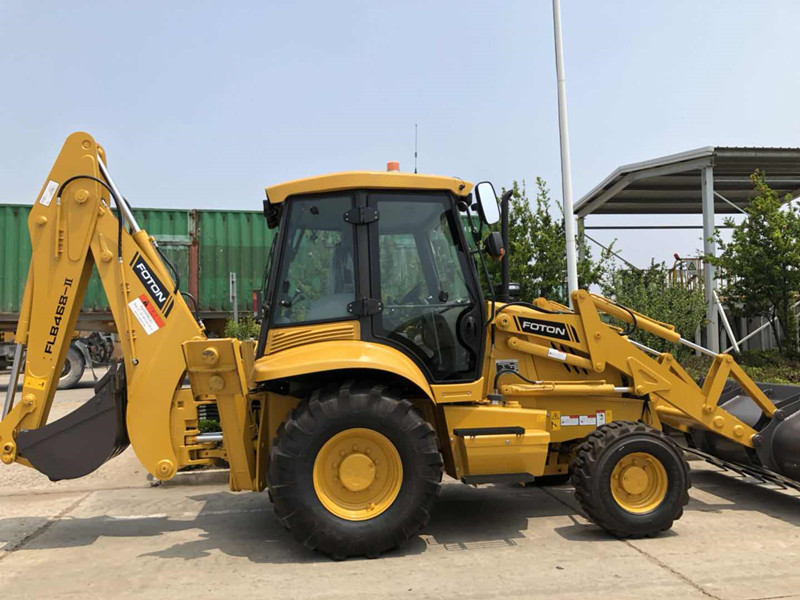

Foton Lovol FLB468 backhoe loader for sale
Features of Foton Lovol FLB468 backhoe loader,
Multi-function, High efficiency, It’s the BEST backhoe in China

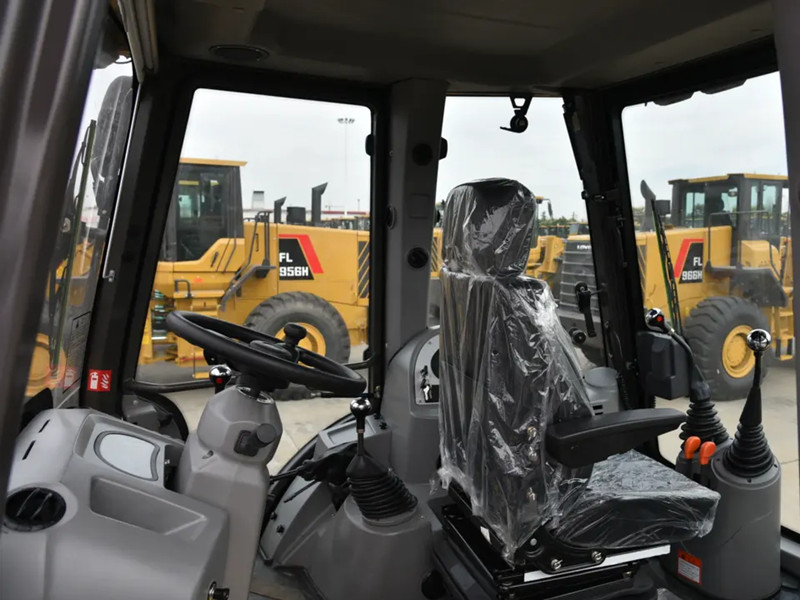

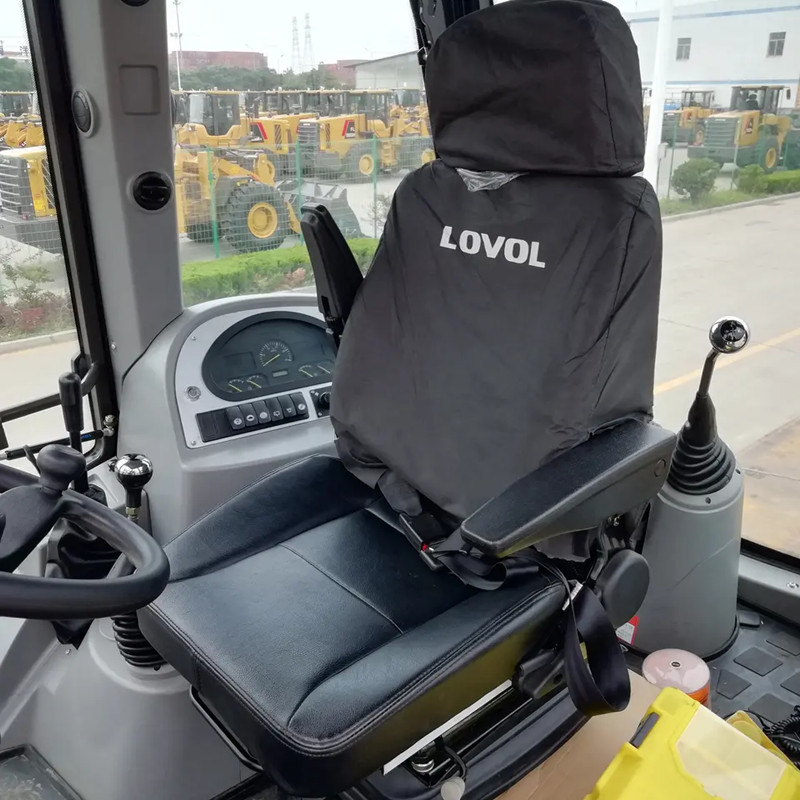

Equipped with WEICHAI WP4G95E221 engine, Carraro/Chinese proven brand gear box and axles, machanical handle operation,1.0m3 Loading Bucket, Digging Bucket 0.3m3, Cab with AC.
Mainly applied for narrow jobsite and light load conditions, such as transporting and smoothing works in farm and bush land, transporting cutting wood in wood factory, cutting trees in forests, the infrastructure and the municipal works.
FLB468-II can meet a variety of functional requirements by changing various attachments, such as multi-function bucket, breaker etc.
Foton Lovol FLB468 backhoe loader specification,
|
Item
|
Unit
|
Specifications
|
|
Engine Model
|
/
|
WP4G95E221
|
|
Rated Power
|
kW
|
70
|
|
Operating Weight
|
kg
|
7890
|
|
Engine Rated Speed
|
RPM
|
2200
|
|
Engine Rated Power
|
kW
|
70
|
|
Max. Travel Speed
|
Kw/H
|
36
|
|
Traction Force
|
kN
|
≥76
|
|
Wheel Base
|
mm
|
2100
|
|
Overall Dimension（L×W×H）
|
mm
|
7600*2230*3800
|
|
Wheel Tread (Front)
|
mm
|
1880
|
|
Wheel Tread(Rear)
|
mm
|
1750
|
|
Gradeability
|
°
|
≤28
|
|
Tire(Front)
|
/
|
14-17.5-14PR
|
|
Tire(Rear)
|
/
|
19.5L-24-12PR
|
|
Loading Bucket Capacity
|
m³
|
1.0
|
|
Bucket Max. Breakout Force
|
kN
|
≥28
|
|
Boom Max. Breakout Force
|
kN
|
≥37
|
|
Total Cycle Time
|
s
|
8.5
|
|
Dumping Height
|
mm
|
2720
|
|
Dumping Clearance
|
mm
|
900
|
|
Digging Bucket Capacity
|
m³
|
0.3
|
|
Bucket Max. Breakout Force
|
kN
|
≥45
|
|
Bucket Arm Breakout Force
|
kN
|
≥44
|
|
Max. Dumping Height
|
mm
|
3800
|
|
Max. Digging Depth
|
mm
|
4080
|
|
Max. Digging Radius
|
mm
|
5600
|
