best price for sale 5ton 3m3 bucket Foton Lovol wheel loader FL956H

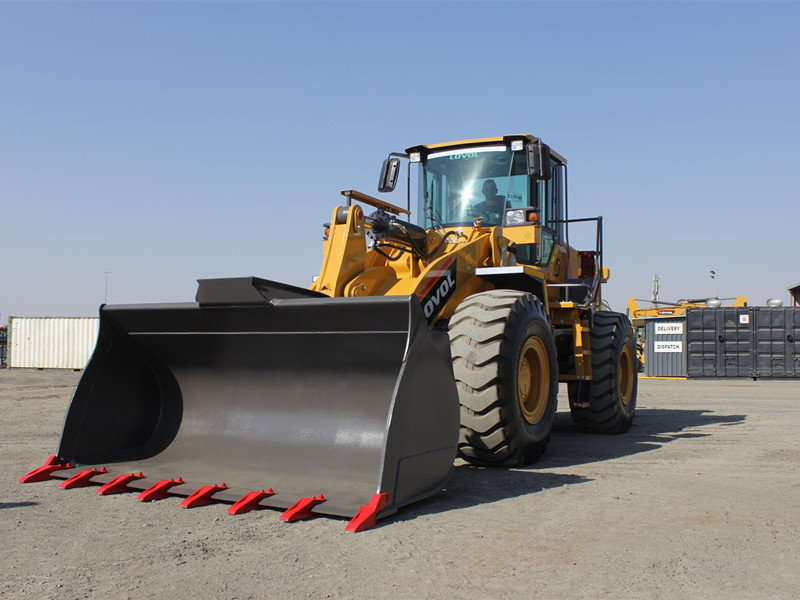

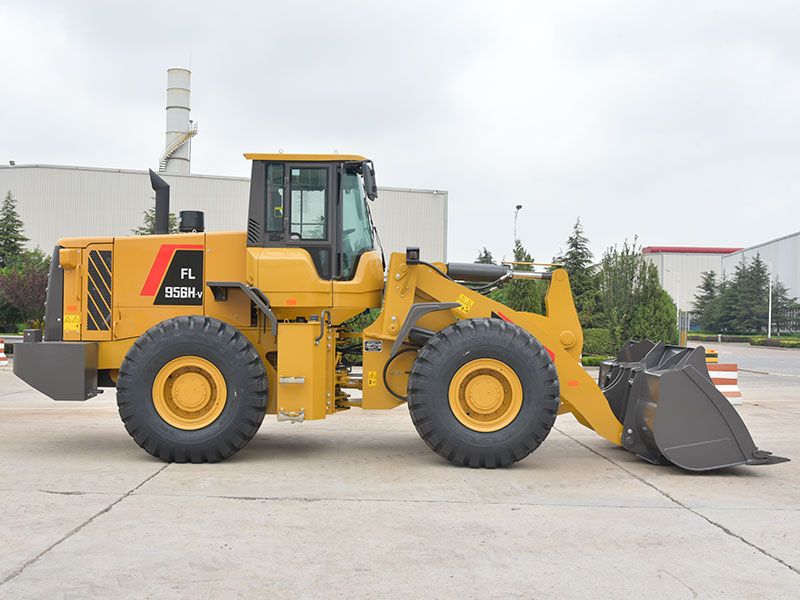

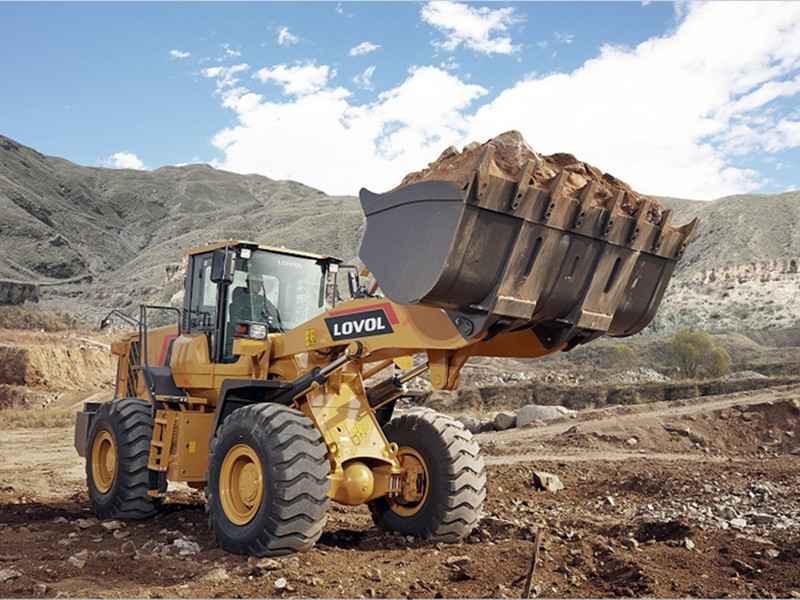

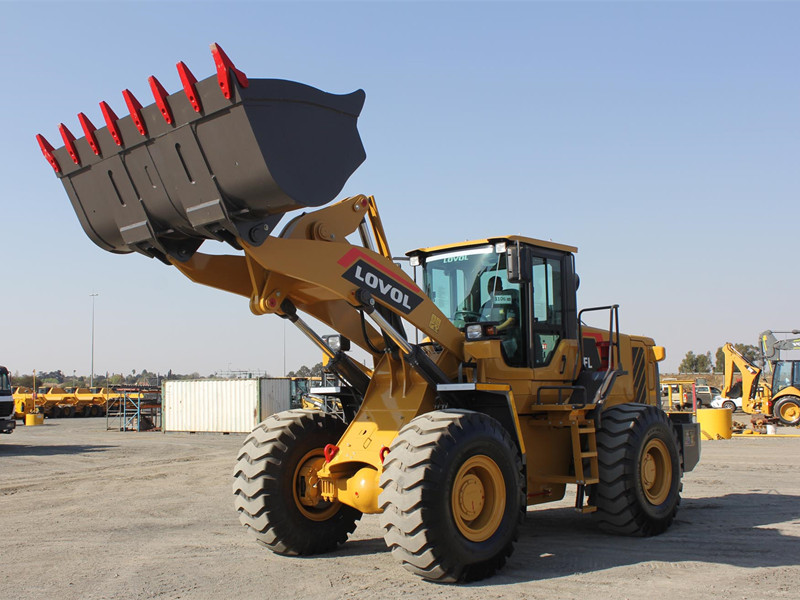

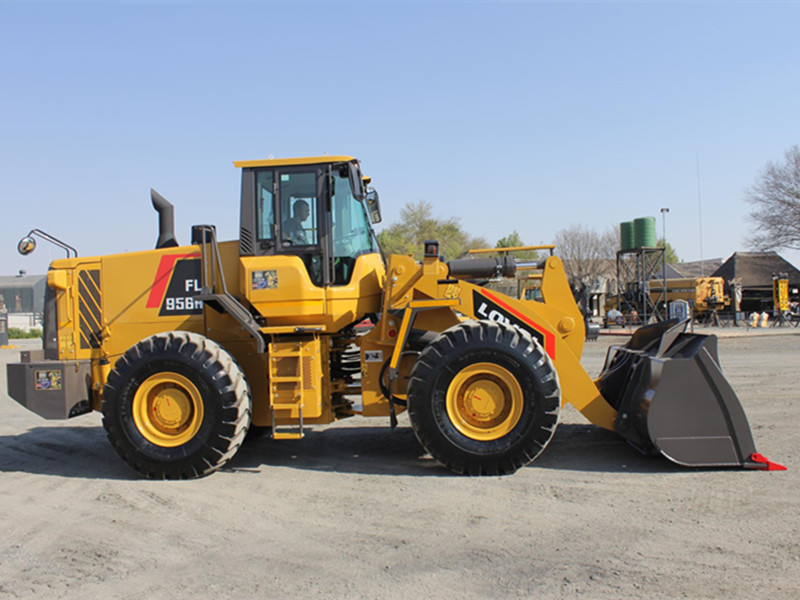

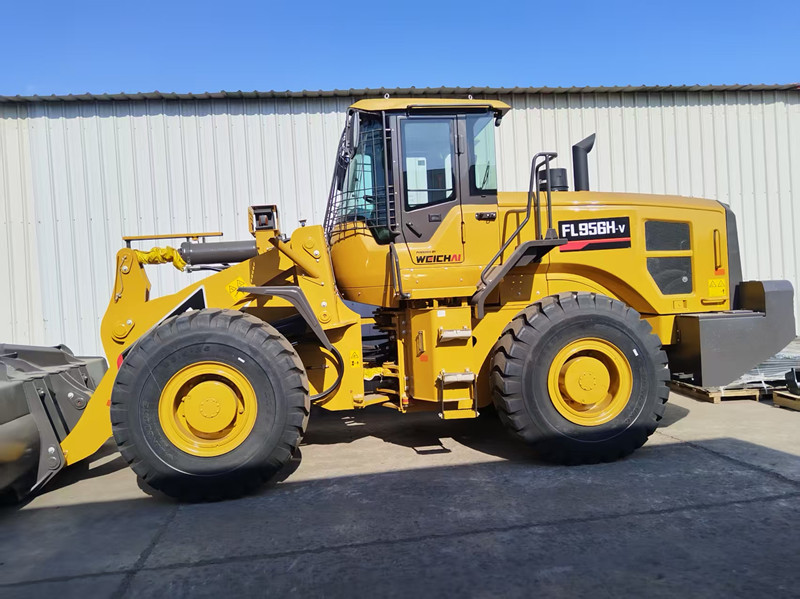

Foton Lovol wheel loader FL956H best price for sale
Features of Lovol wheel loader FL956H.
OUTLINE
Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made, which is firm and reliable.
SAFETY
Thanks to the long wheelbase design, the longitudinal stability of whole truck is improved, the residual load capacity at same height is improved greatly. At the same time, it prolongs the working life time of steering tyre by reducing the rear axle load.
COMFORTABLE
The smaller steering wheel, extra space for foot and operator space, wider forward visibility, all these improve operator’s
comfort and release operator’s fatigue.
The applied integral engine cover strengthens the rigidity of the cover and reduces the noise at the same time.
Lovol wheel loader FL956H specification,
|
Parameter
|
Foton lovol FL956H
|
|
Operating Weight(kg)
|
16970
|
|
Bucket Capacity(m3)
|
3.3
|
|
Rated Load(kg)
|
5500
|
|
Max. Traction Force(kN)
|
160
|
|
Max. Breakout Force(kN)
|
165
|
|
Max. Gradeability(°)
|
30
|
|
Dumping Angel(°)
|
44
|
|
Lifting Height(mm)
|
5645
|
|
Max. Dumping Height(mm)
|
3100
|
|
Dumping Reach(mm)
|
1160
|
|
Mini. Ground Clearance(mm)
|
440
|
|
Wheel Tread(mm)
|
2150
|
|
Wheel Base(mm)
|
3300
|
|
Mini. Turning Radius of Outside Tire(mm)
|
7020
|
|
Dimension(L×W×H mm)
|
8360×2980×3380
|
|
Engine Model
|
Weichai WD10G220E24
|
|
Cylinder No.-Cylinder Dia.×Stroke(mm)
|
6-126*130
|
|
Max. Torque (N·m)
|
900
|
|
Rated Power(kW)
|
162
|
|
Rated Speed (rpm)
|
2000
|
|
Transmission Type
|
Mechanical shifting planetary
|
|
No. of Gears
|
Front2back1
|
Shipping in container to save shipping freight,
