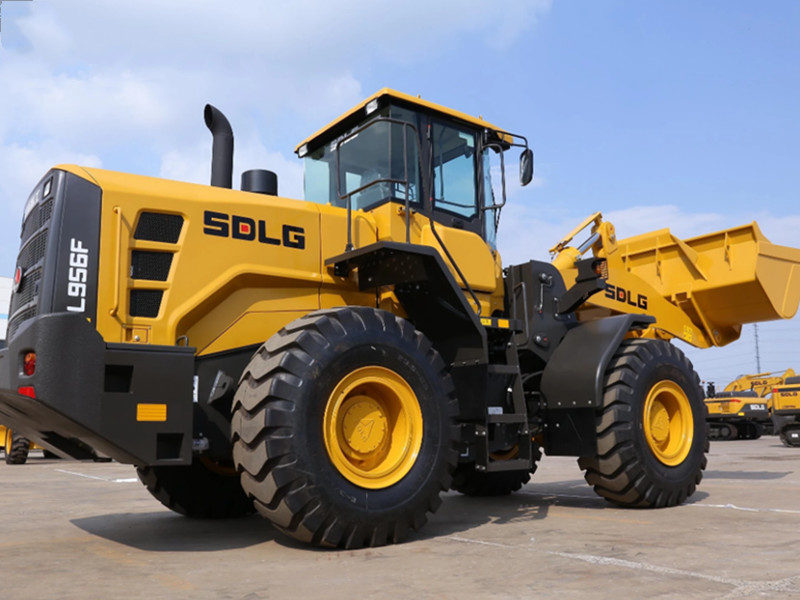

SDLG wheel loader L956F

Category:

INQUIRY

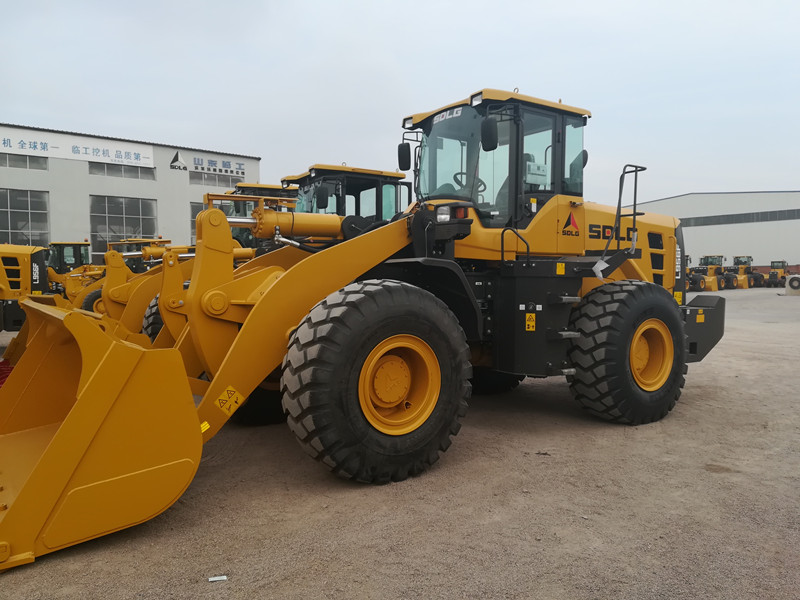

5ton earth moving machinery wheel loader SDLG L956F

Advantages of wheel loader SDLG L956F

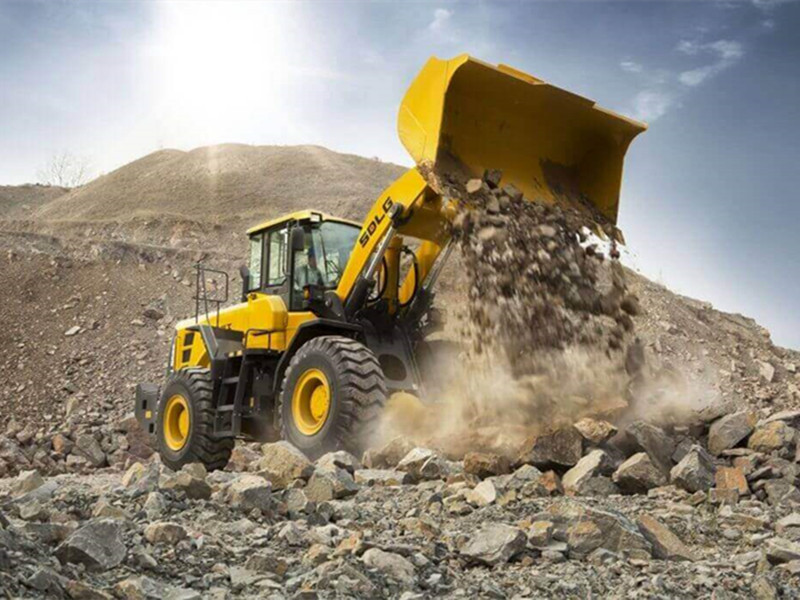

L956F is a long-wheelbase energy-saving loader newly designed by Shandong Lingong. It integrates energy saving, reliability and comfort. It has super stability and super digging force. It is more suitable for heavy working conditions such as mines. Outstanding performance.

1. It is equipped with a low-speed, high-torque electronically controlled three-stage exhaust engine with strong power and high reliability; it has a fault detection interface, which can facilitate the detection and maintenance of the engine.

2. Equipped with Lingong’s self-made gearbox, reinforced drive axle, high reliability; electric pneumatic control parking brake, safe and reliable.

3. The center-lengthened wheelbase is up to 3300mm, the stability of the whole machine is improved, and the tipping load is greater; the super-large lifting cylinder, the boom breaking force; the abrasion resistance of the bucket wall and bottom is optimized; the front axle tire mark Equipped with 18-layer tires, it is more suitable for heavy-duty mining conditions.

4. The newly optimized new generation front and rear frames have reasonable load distribution, reduced vibration, and doubled the fatigue life.

5. Pilot operation, adopting international well-known brand control system, light and flexible operation, reliable performance. Load sensing full hydraulic steering system, dual steering pump can realize automatic control of grading variables, energy saving and high efficiency.

6. The new streamlined appearance design is adopted, and the whole machine is beautiful in appearance; the new generation of cab, newly optimized and designed according to ergonomics, has an increased space of 15%, and is safe and comfortable.

7. Digital step-by-step instrument display, high human-computer interaction; the electrical system of the whole machine adopts centralized control, which is convenient for inspection and maintenance.

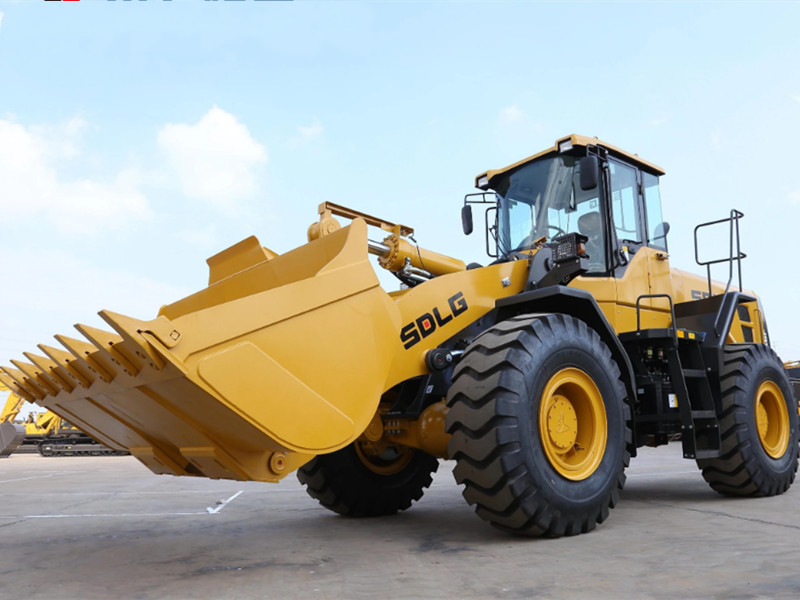

wheel loader SDLG L956F



























Specifications of wheel loader SDLG L956F,

Overall dimension
L*W*H 8180*3024*3423mm
Wheel base 3200mm
Min. ground clearance 534mm
Max. dumping height 3040mm
Lifting height 4080mm
Dumping distance 1095mm
Dumping angle 45
wheel tread 2250mm
steering angle 35
horizontal crossing radius 7230mm
Min. turning radius 6325mm
Overall parameters
Backet capacity 3.0m3
Rated load 5000kg
operating weight 17450kg
Max. tractive force 165kN
Max. breakout force 175kN
Tipping load 110kN
Engine
Model WD10G220E23
Type Inline, watercooled, dry cylinder liner, direct injection
Rated power 162kW
Rated speed 2000r/min
Engine displacement 9726ml
Max. torque 980N.m
Emission standard GB 20891-2007(China Phase II)
Min. fuel-consume ratio 215g/kw.h
Transmission system
Torgue converter single-stage four-element
double-turbine hydraulic torque converter
Transmission type Planetary power shift
Gears Forward 2 reverse 1
Hydraulic system of working device
Type Pilot control
total time 10s
Brake system
Service brake type Air over hydraulic disc type
Parking brake type Electric pneumatic internal expansion shoe type
Steering system
Type Load sensing full hydraulic articulated steering
System pressure 16 Mpa
Fill capacity
Fuel 260L
Hydraulic oil 240L
Engine 20L
Transmission 45L
Drive axle Forward 26L+ reverse 26L
Braking system 4L
