Tri axle tanker trailer semi tanker trailer for sale

  • tri axle tanker trailer
  • oil tanker trailer

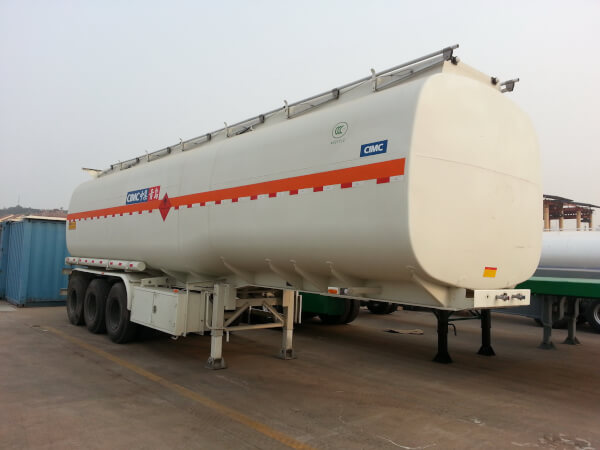

tri axle semi tanker trailer

Category:

INQUIRY

Low price tri axle tanker trailer

Our tri axle tanker trailer features,

1. The tanker trailer all famous brand parts like FUWA axle, JOST landing gears, WEBCO brake valve, Triangle tires.

2. Strong frame with world top class welding and high strength steel.

3. Used for fuel transport like diesel, gasoline, crude oil.

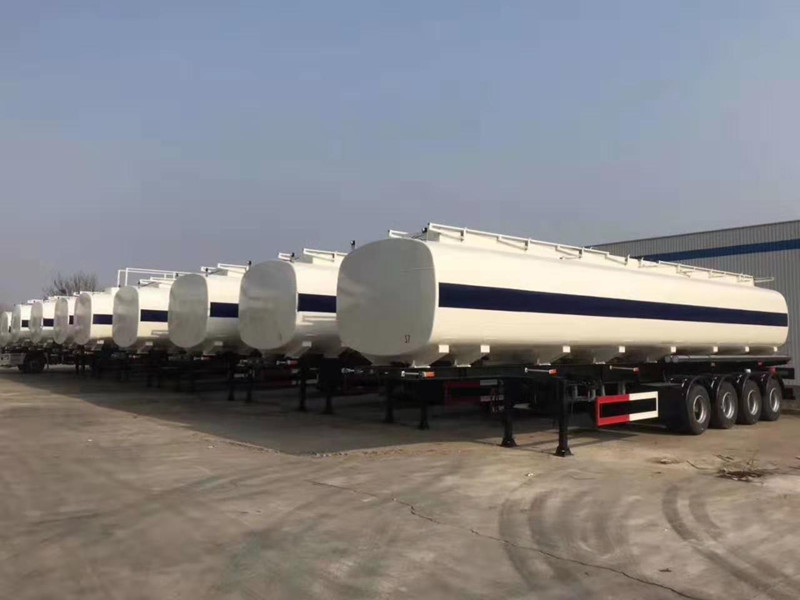

China fuel tanker trailer

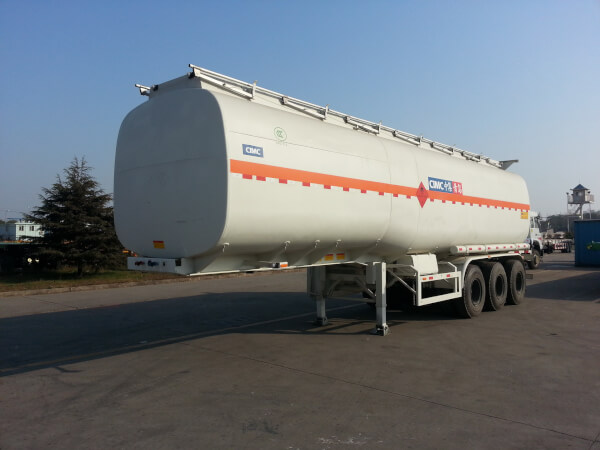

tri axle tanker trailer









Specifications of  our tri axle tanker trailer,

Tare Weight About 10T
Dimension 12000mm*2500mm*3850mm
Loading Capacity (T) 35,000 liters
 Axle 3 axles / 2axles, 13 T/16T/20T BPW / FUWA / Huajing /Jinsheng
Rim 9.00-22.5 (special for export market)
Tire 12R22.5 Double coin brand 13pieces/ 9 pieces
Suspension Mechanical America Type optional/ bogie suspension
Spring leaf 90(W)mm*13(Thick)mm*10 Layer
King pin brand JOST optional
Support leg Jost brand optional
Main beam Height: 500mm, upper plate is 14mm, middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel

Brake chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS Without (optional)
Valve WABCO valve
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box 1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of final paint
Shipping Terms: By bulk cargo carrier, RORO

TANKER TRAILER SHIPPING IN PORT

tanker trailer shipping



























Welcome to contact 24 hours. Sales manager: Eric Xu  Tel/whatsapp: 008615066278170  Email: [email protected]

Qingdao Elite Machinery Co., Ltd China top supplier of heavy truck.
